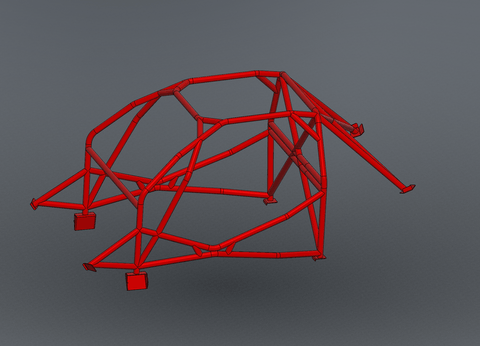

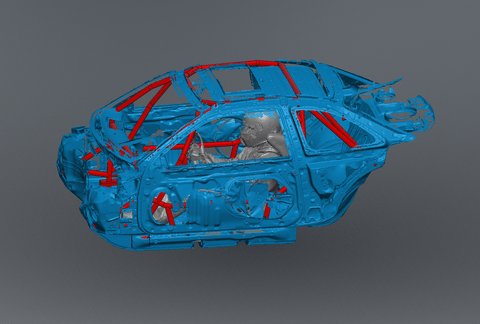

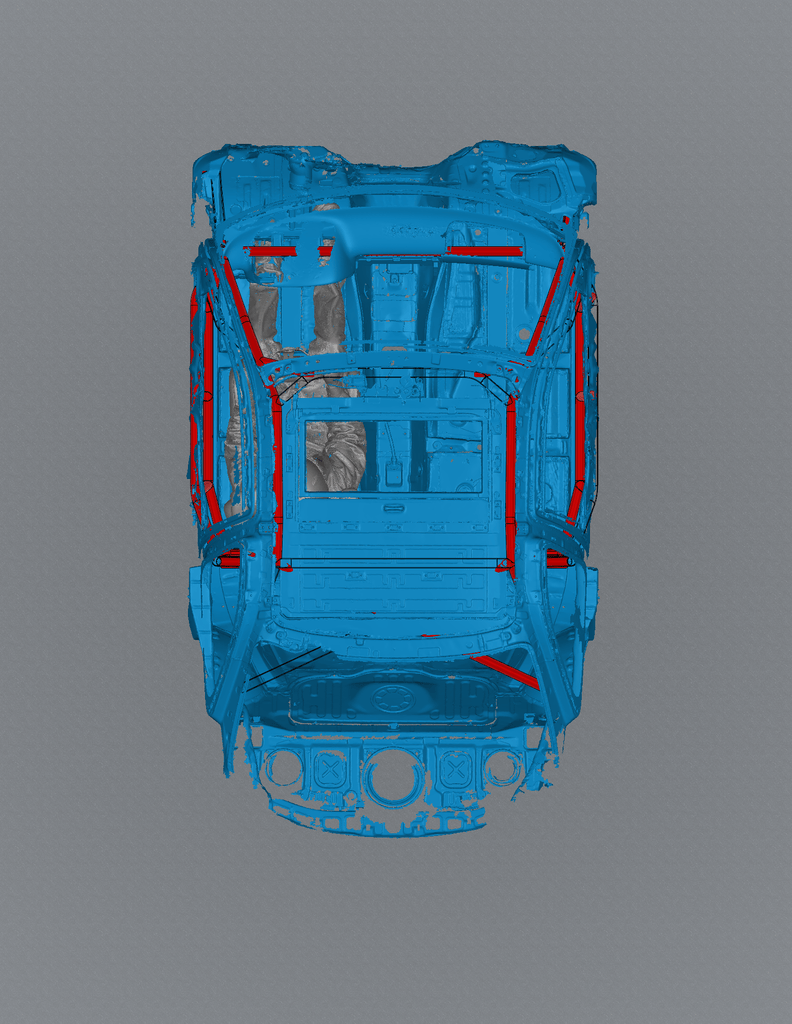

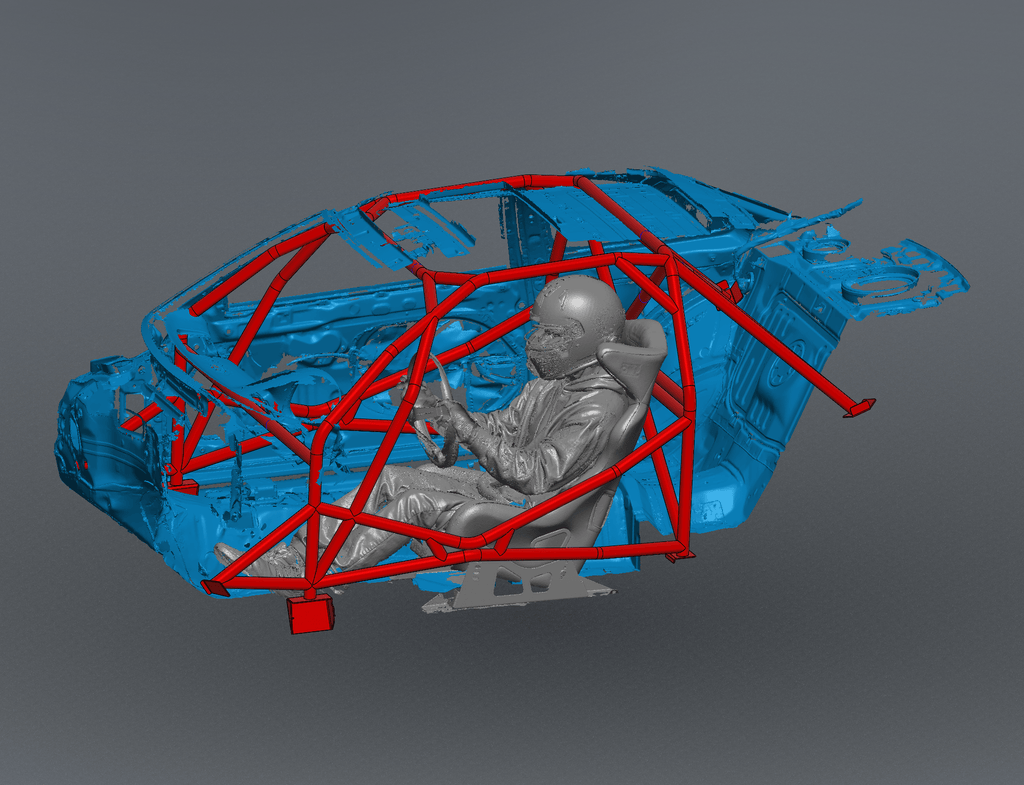

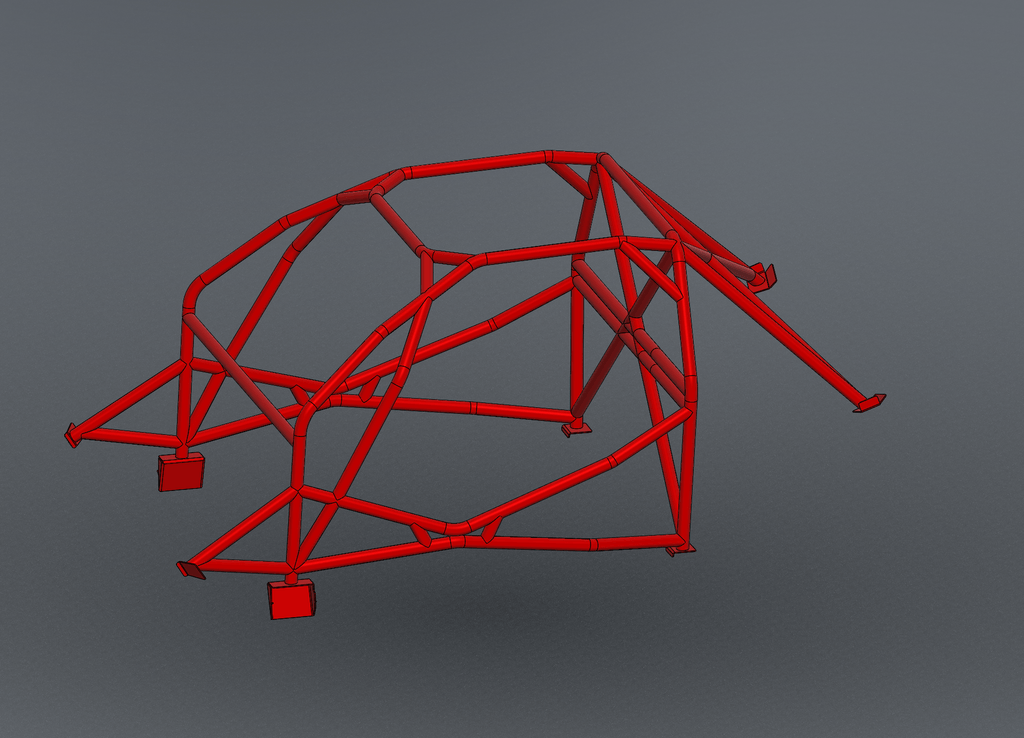

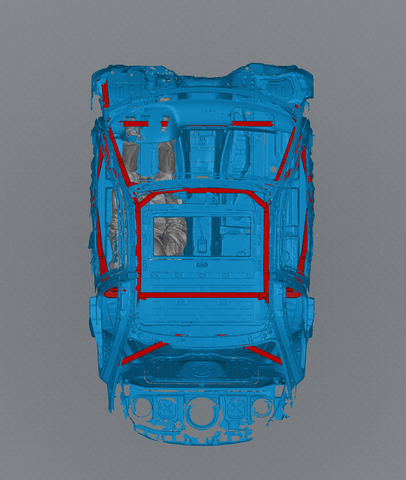

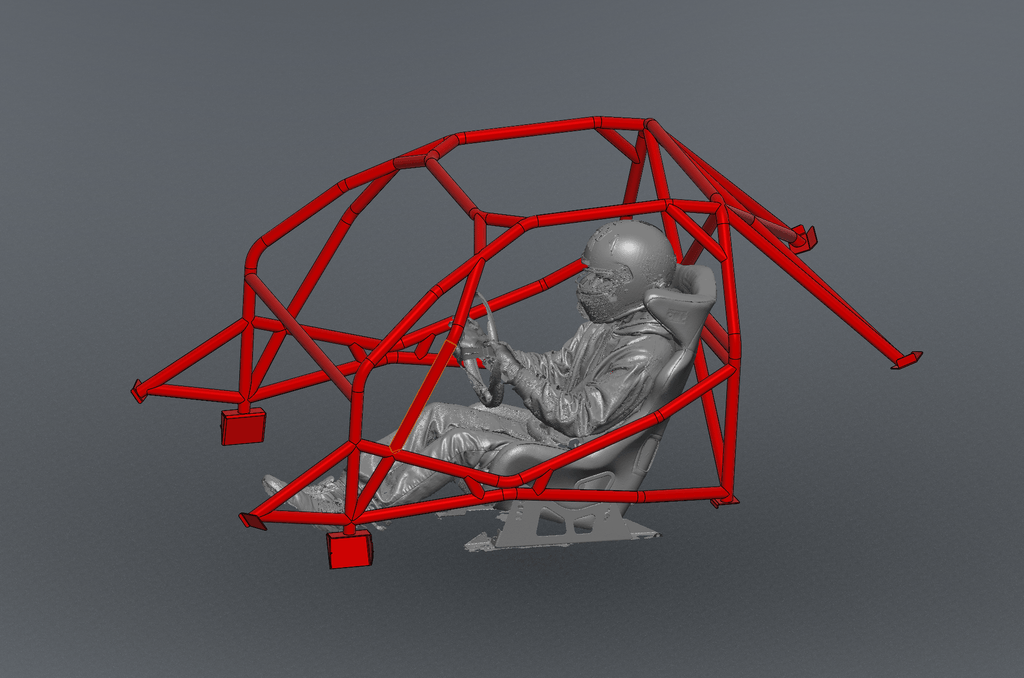

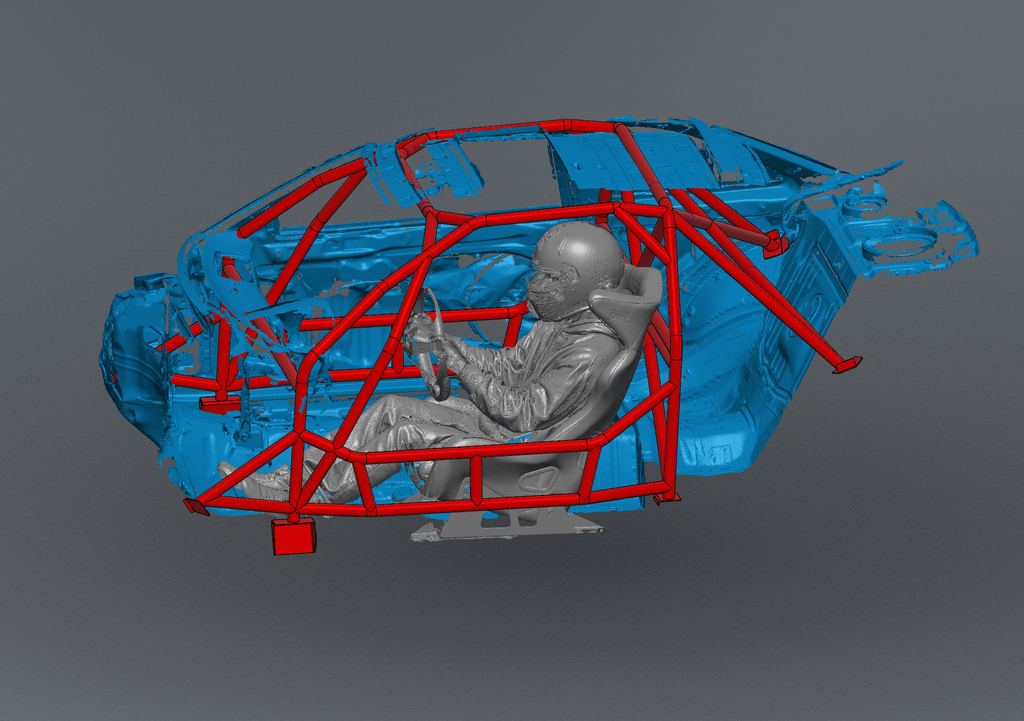

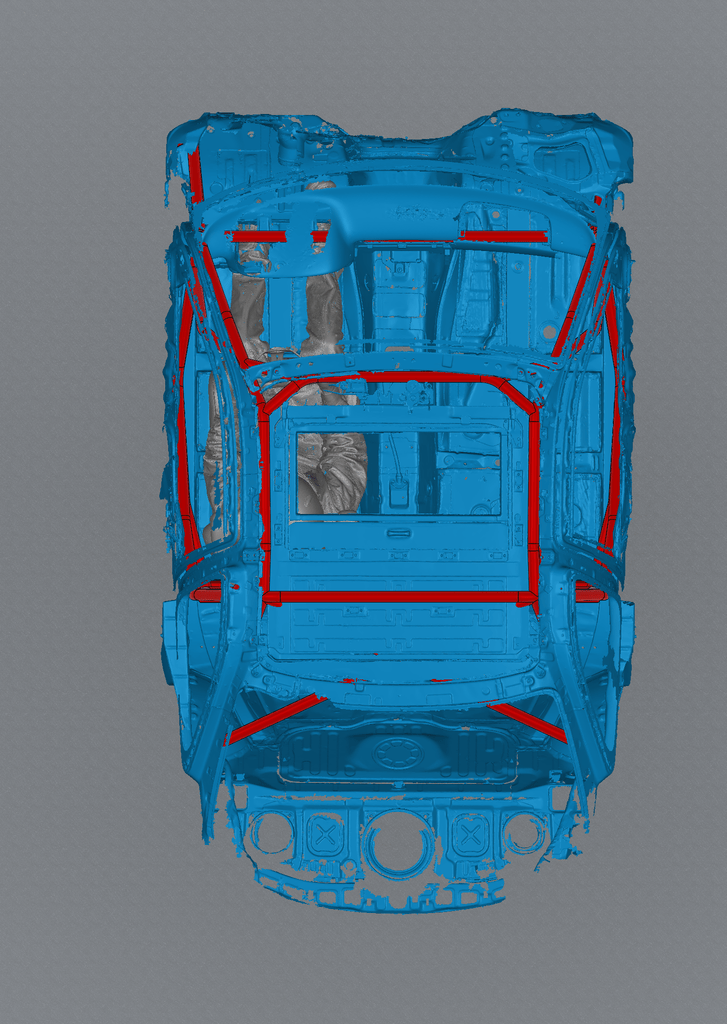

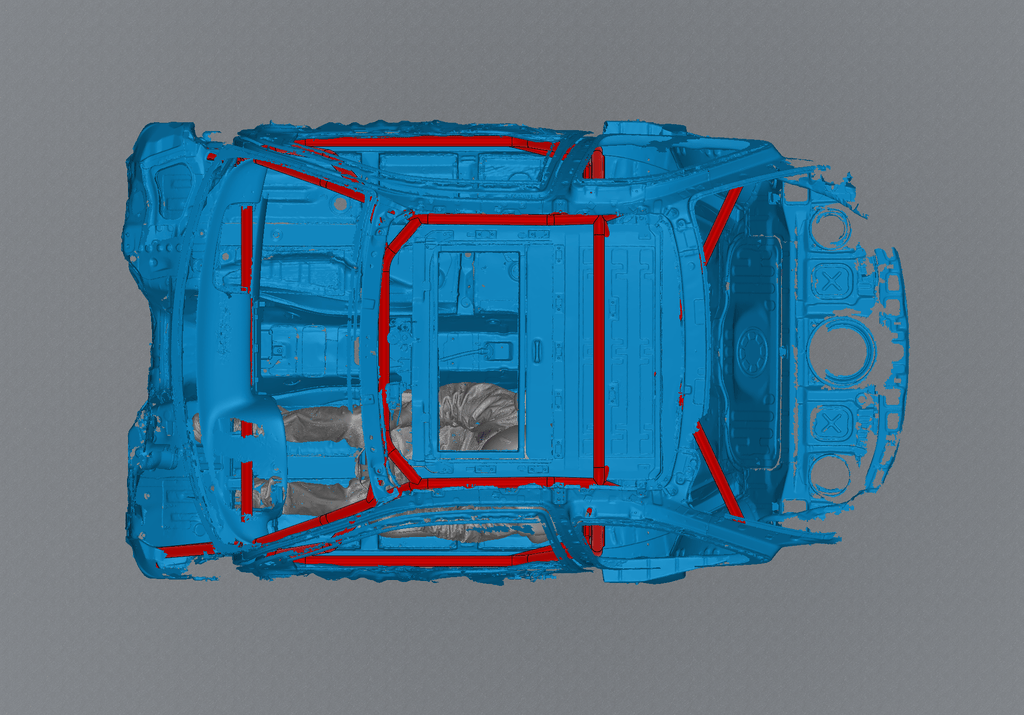

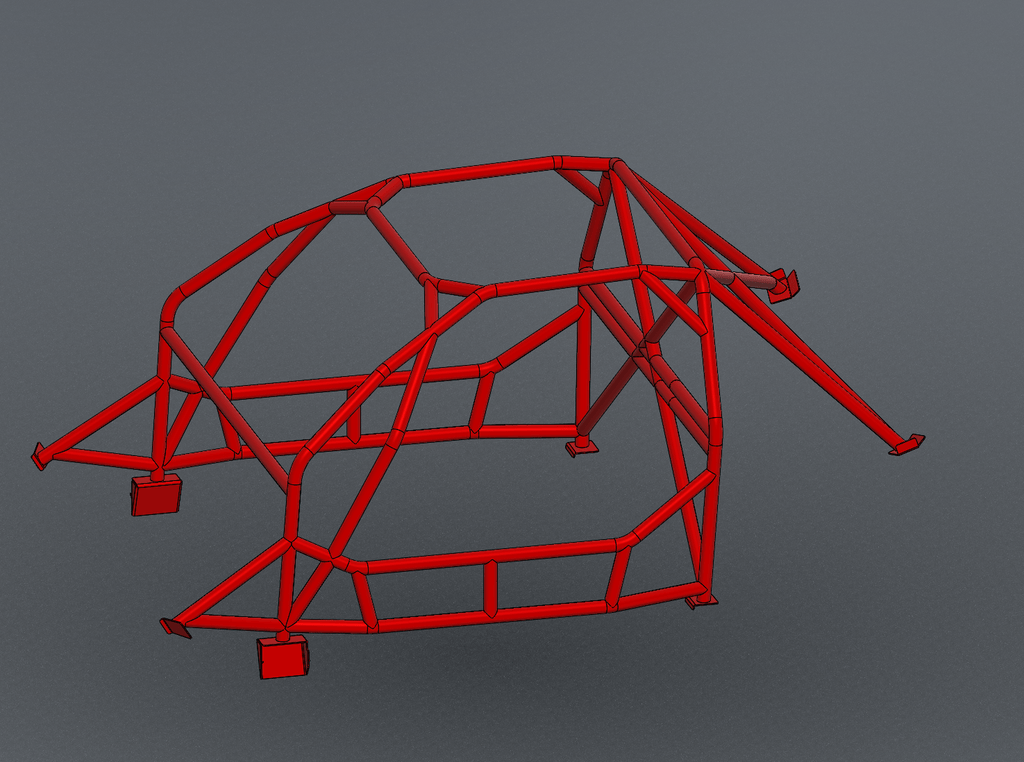

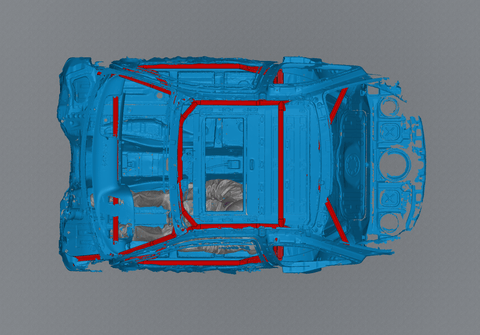

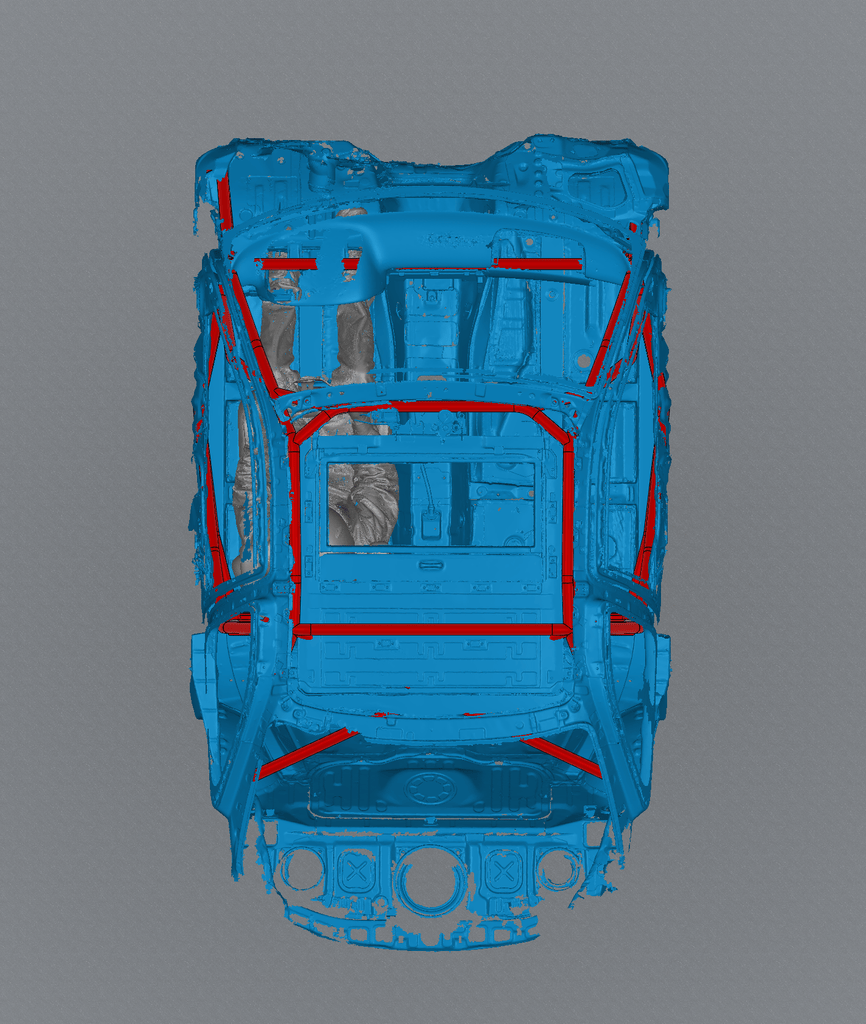

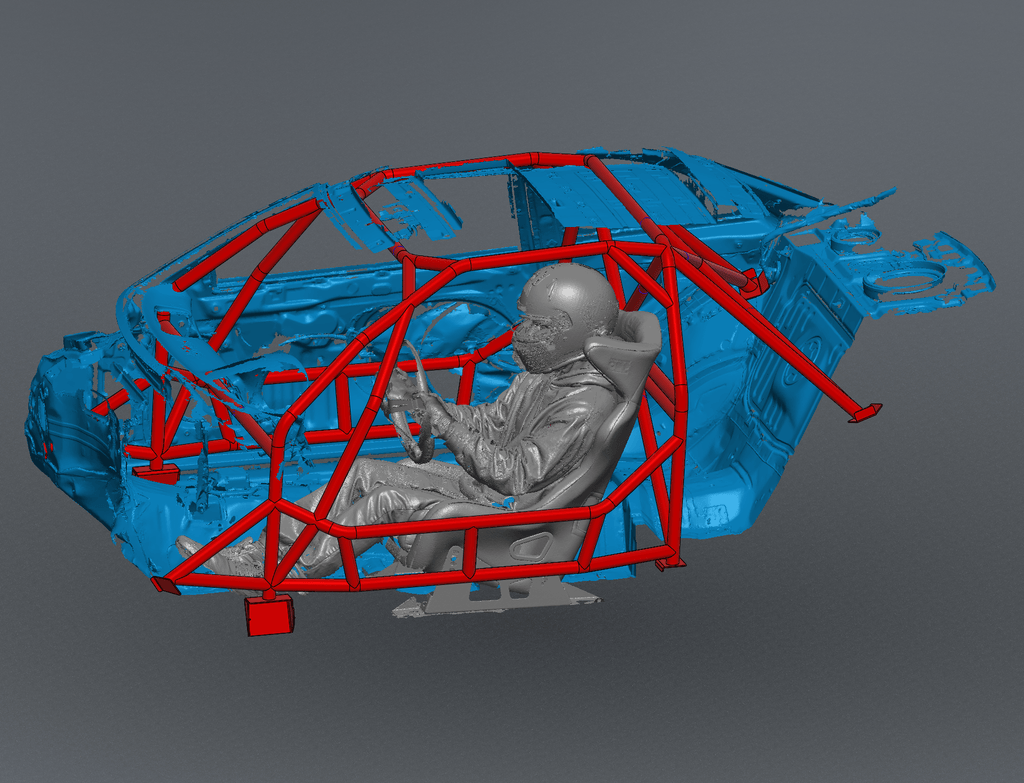

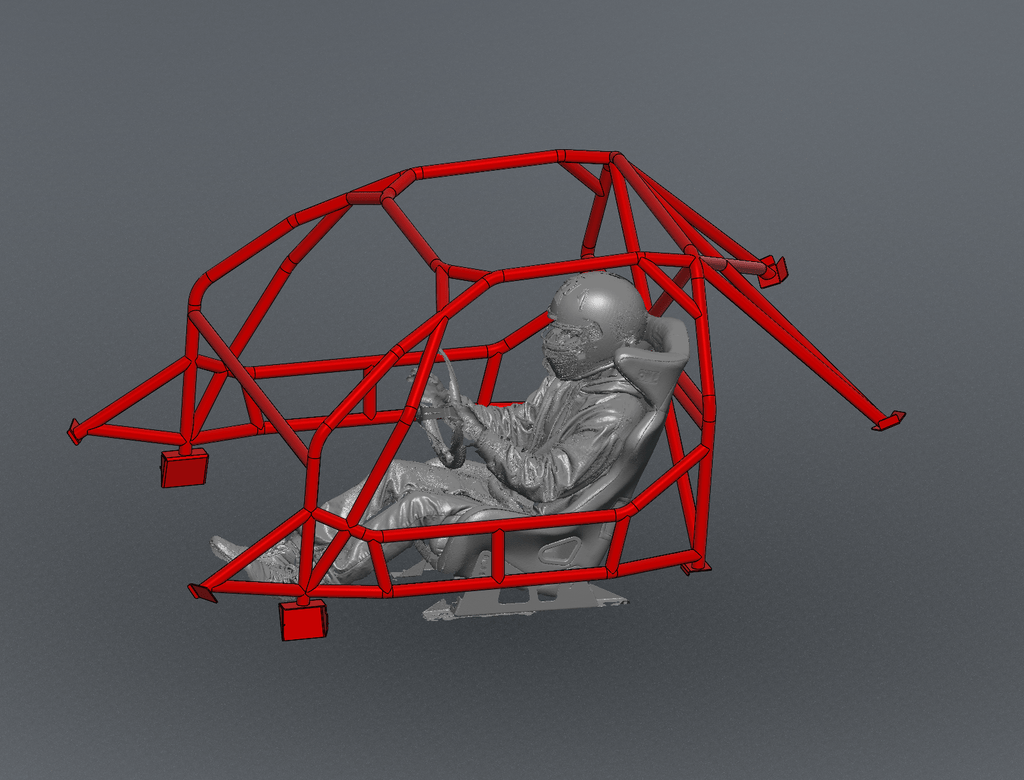

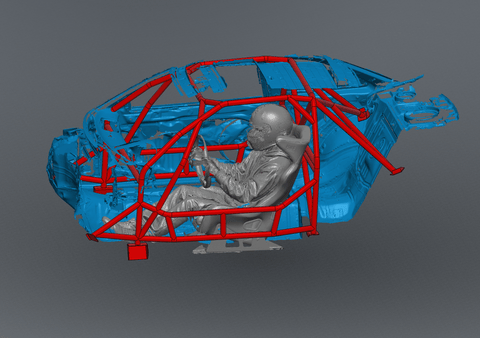

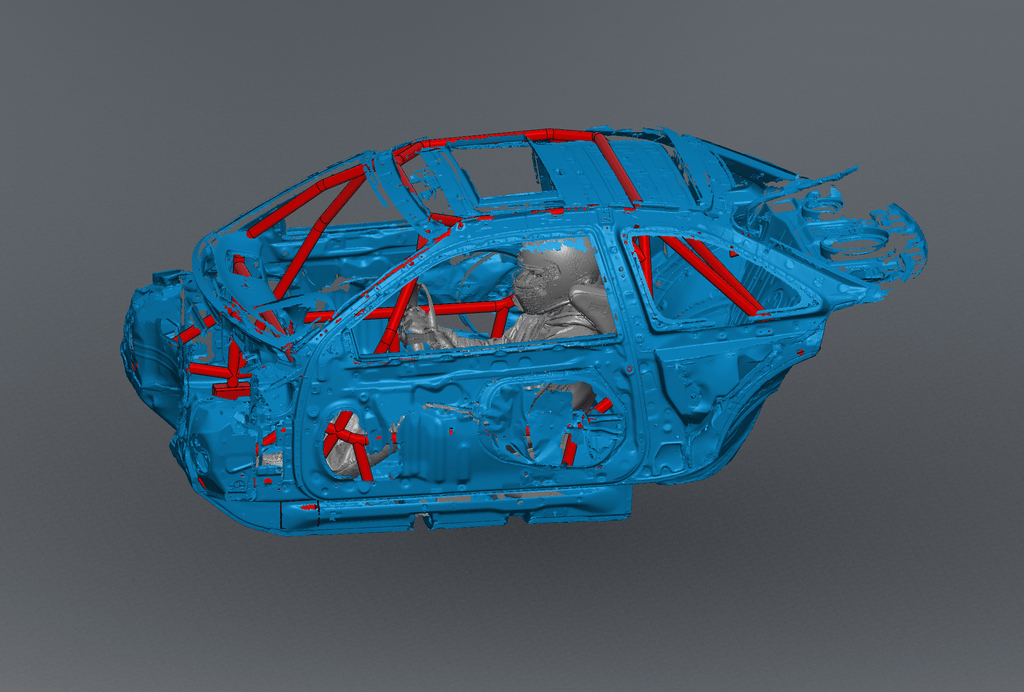

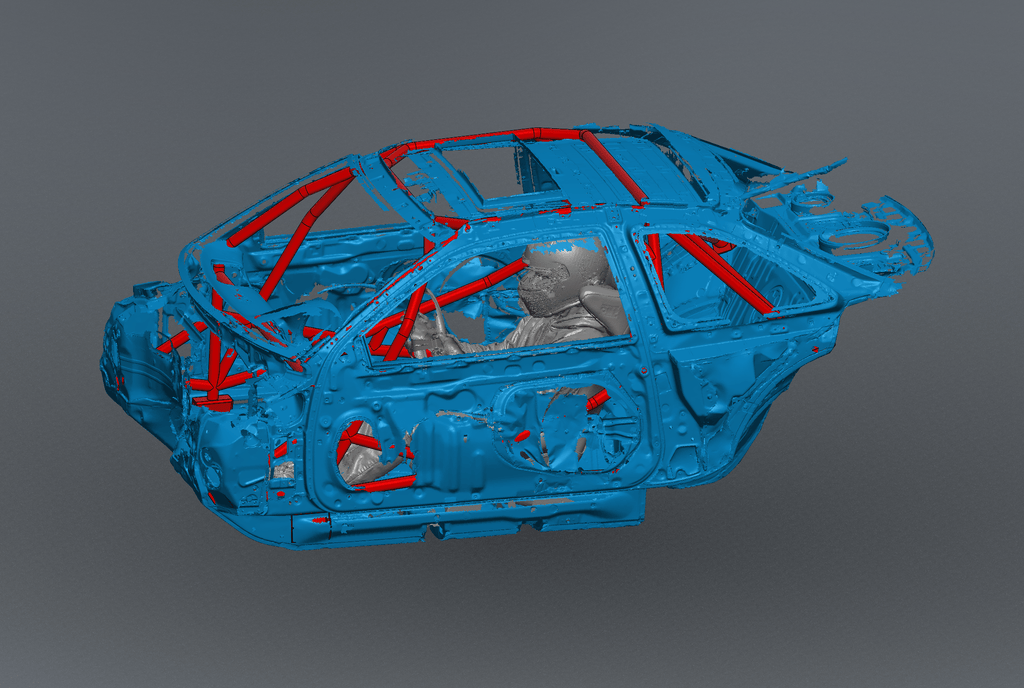

The CageKits SC300 / SC400 FD Spec Roll Cage Kit is engineered for exceptional precision and chassis fitment. Built from 1.5″ x .095″ 1020–1026 DOM tubing, each bar is CNC-notched, precision-bent, and laser-etched for perfect alignment and an accurate, straightforward install. Designed specifically for the SC300 / SC400 (1992–2000), this kit delivers an exact fit within the chassis, providing a clean, professional foundation for your build — no custom fabrication required.
Made to Order — Ships Upon Completion
Door Bar Styles
This kit includes your choice of door bar layout, each designed for proper fitment and ease of installation within the SC300 / SC400 chassis. Both styles provide equal structural integrity and meet Formula Drift specifications. Options include Ladder-Style or X-Style door bars.
Door Bar Depth
The kit offers two door bar depth options to suit your interior and window setup. Both options require a gutted chassis for installation.
-
Gutted Door Bar Depth – Sits deep within the door cavity for maximum side clearance. Full removal of OEM door cards is required. Windows will not remain.
-
Non-Gutted Door Bar Depth – Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.5″ x .095″ 1020–1026 DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification and positioning
- Precision bent to match SC300 / SC400 chassis geometry
- Dual harness bar heights (choose configuration during install)
- Compatible with optional FIA-style bars (not required to complete install)
- Includes single or dual diagonal options for main hoop and rear down bars
Installation & Compliance Notes
-
Sunroof Removal: The sunroof must be removed to install this roll cage.
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
