SKU: S13-A-2101 1.75″ x .095″ DOM
SKU: S13-A-2102 1.75″ x .120″ DOM
Road Race Spec – Made to Order – Ships When Complete
Overview

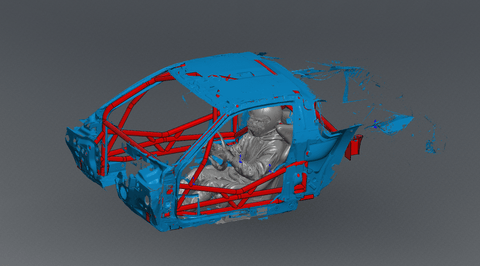

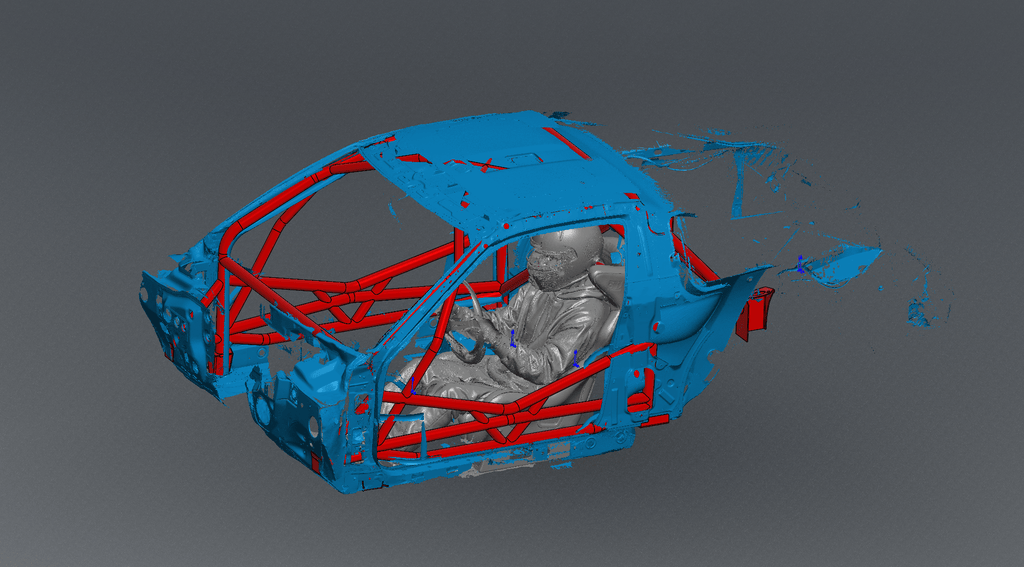

The Nissan S13 Road Race Non-Gutted Roll Cage Kit with X Door Bars is designed to meet NASA and SCCA tech requirements using 1.75″ x .095″ DOM OR 1.75″ x .120″ DOM steel tubing for the main structure and 1.5″ x .095″ DOM steel tubing for the supporting components. This kit provides excellent protection and structural integrity while retaining trimmed, non-gutted door panels, allowing for functional windows in a road race application.
This roll cage is a made-to-order kit, and we recommend verifying compliance with your series’ regulations before purchasing.
Key Features
-
Vehicle Fitment: Nissan S13 (1989–1994)
-
Material:
-
Main Structure: 1.75″ x .095″ DOM OR 1.75″ x .120″ DOM steel tubing
-
Supporting Structure: 1.5″ x .095″ DOM steel tubing
-
-
NASA Tech Compliance: Meets NASA regulations for road race applications with .095″ wall
- SCCA Tech Compliance: Meets SCCA regulations for road race applications with .120″ wall
-
Weld-In Design: Requires professional welding and installation
-
CNC Notched & Mandrel Bent Tubing for a precise and efficient install
-
Laser-Etched Fitment Guides to assist with accurate tube placement
-

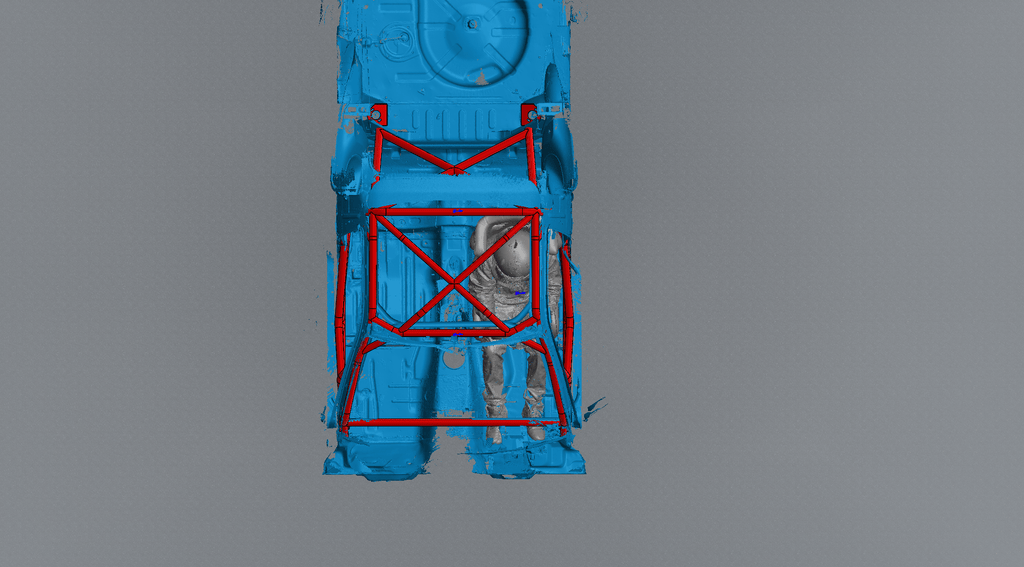

X Door Bars: Adds lateral protection and meets the strength demands of road racing
-
Non-Gutted Configuration:
-
Requires trimming of door panels but retains enough of the panel to keep working windows
-
-
Two Harness Bar Height Options:
-
Dual diagonals (main and rear down bars)
-
-
Tube Gussets for additional strength and reinforcement at critical points
-
FIA Bars
Description

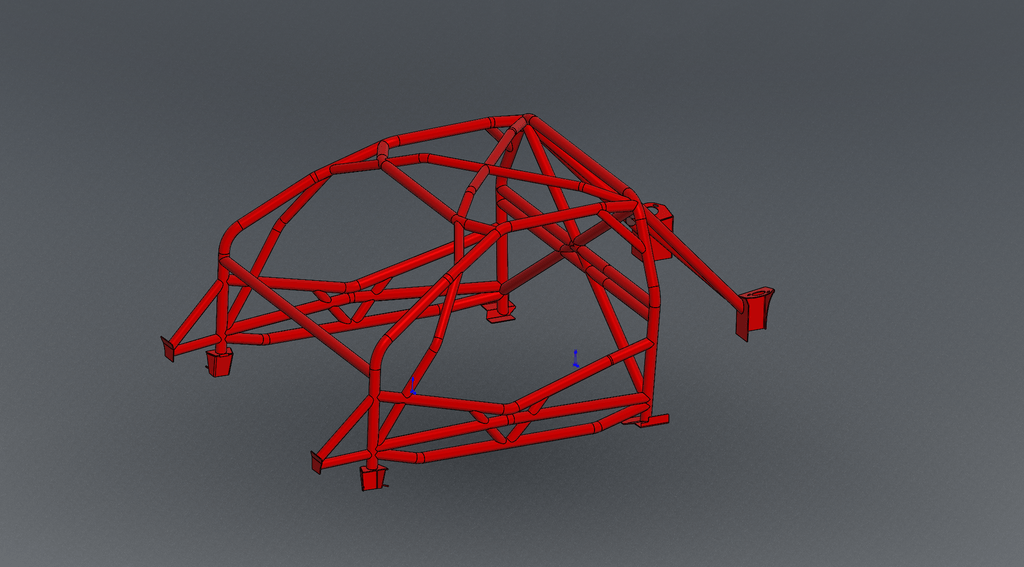

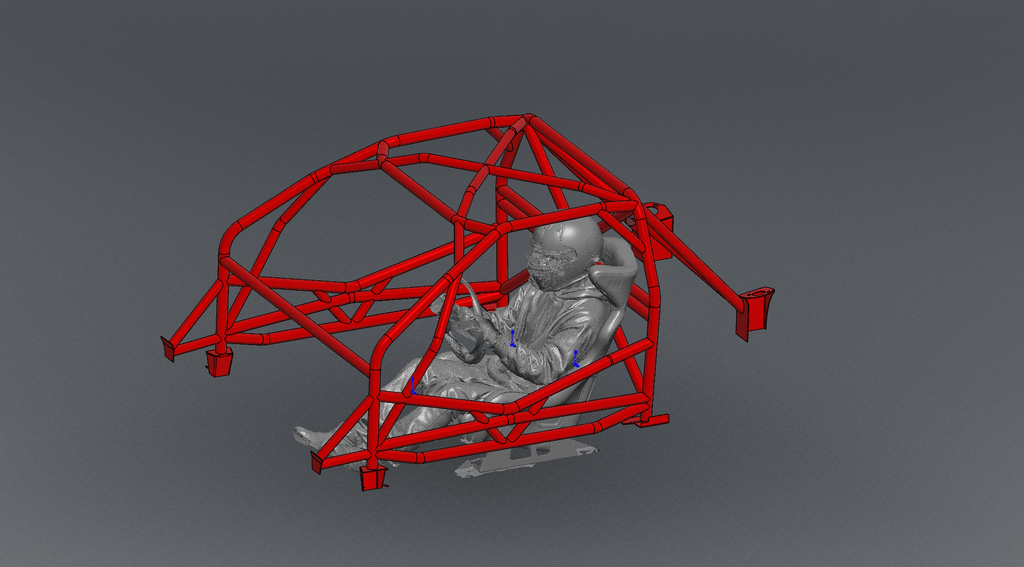

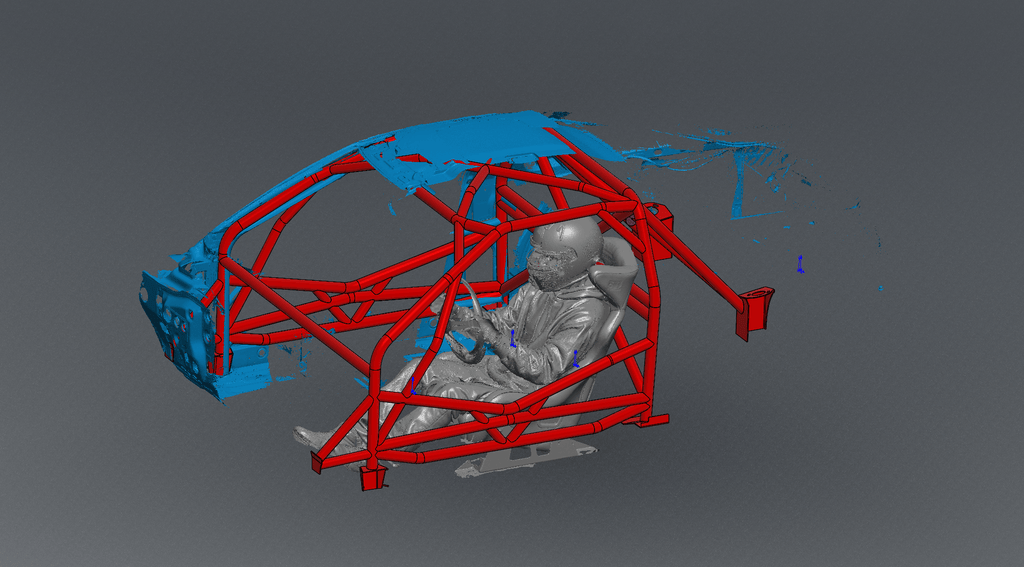

The S13 Road Race Non-Gutted Roll Cage Kit with X Door Bars is engineered for competitive road racing and designed to meet NASA tech requirements. The main structure of the cage is made from 1.75″ x .095″ / .120″ DOM steel tubing, which includes the Main Hoop, Front Top Bar, Rear Down Bars, and A-pillars. The supporting structure, such as door bars, door bar supports, gussets, and FIA bars, is crafted from 1.5″ x .095″ DOM steel tubing to ensure a lightweight yet rigid setup.
The X-style door bars provide maximum side impact protection, which is essential for road race environments. The non-gutted design requires trimming of the factory door panels but retains enough material to maintain functional windows—ideal for a balance of interior comfort and track safety.
CNC notched and mandrel-bent tubing ensures that each tube fits precisely, making the assembly process quicker and easier. The laser-etched fitment guides simplify the installation process, allowing for accurate tube placement and reducing install time.
This weld-in roll cage kit requires skilled installation. Proper fitting and measurement are essential to achieving the best alignment and ensuring structural integrity.
Important Notes
-
Made to order – All sales are final
-
Complies with NASA tech requirements for road racing
-
Requires trimming of door panels
-
Allows for functional windows
-
Always confirm with your sanctioning body for compliance before ordering
