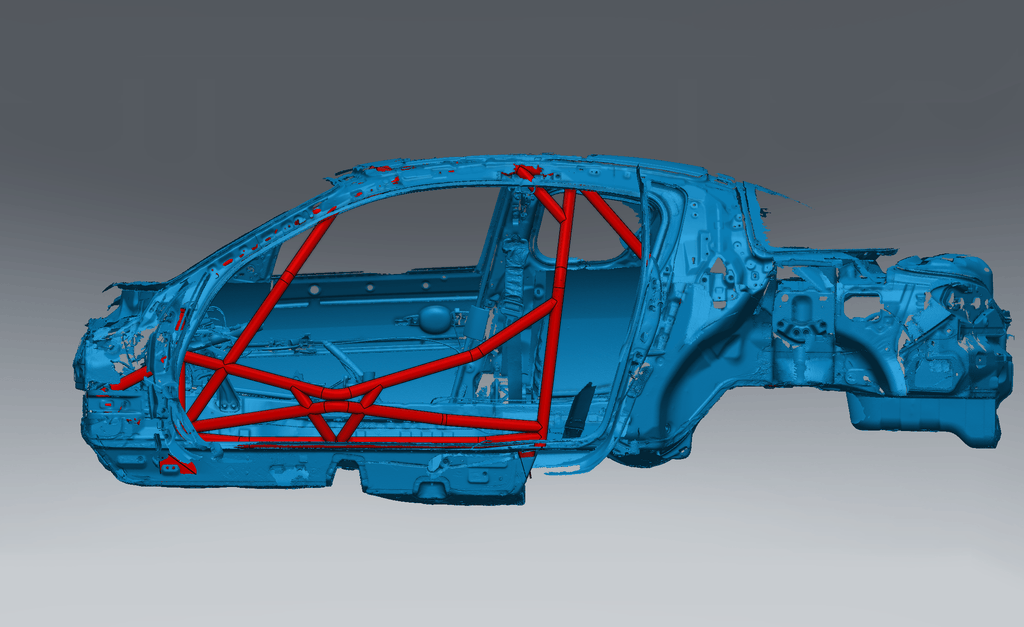

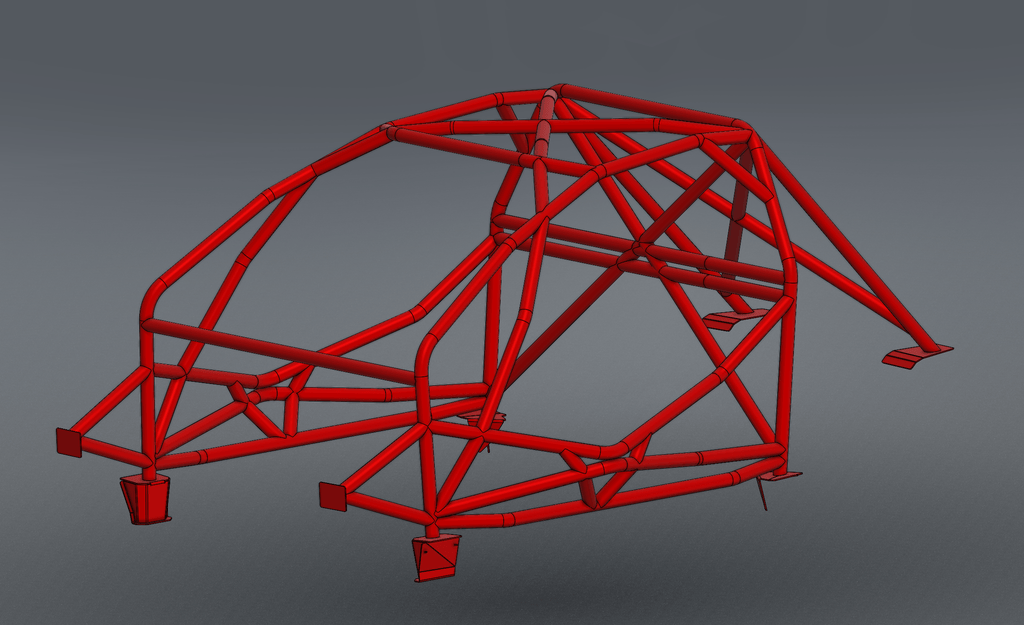

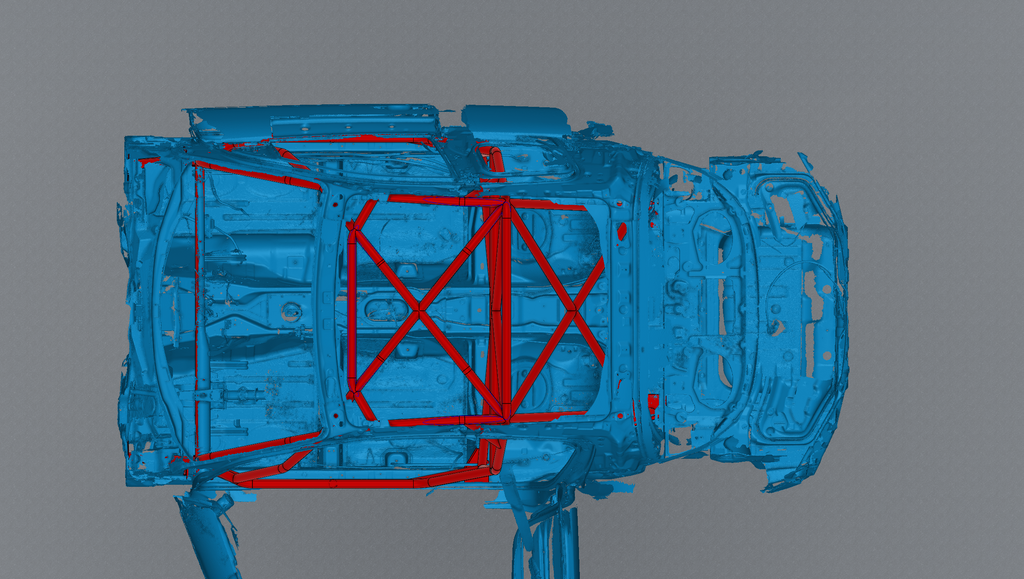

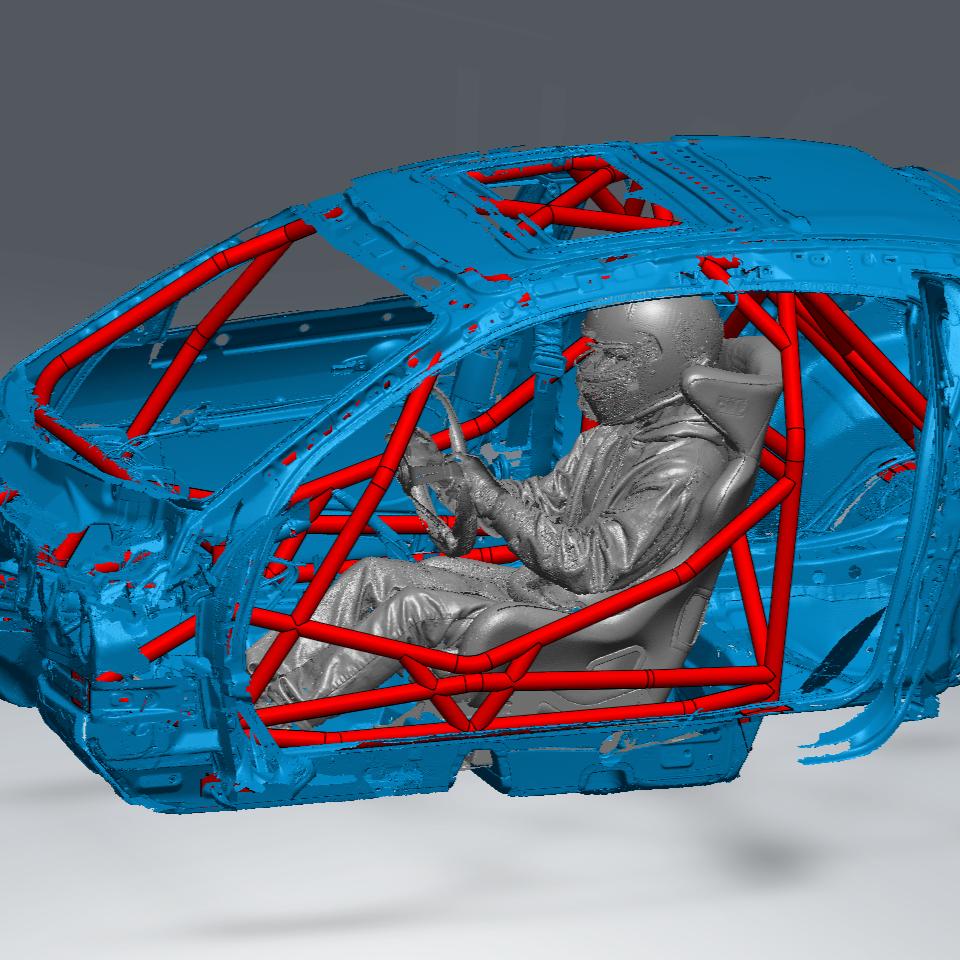

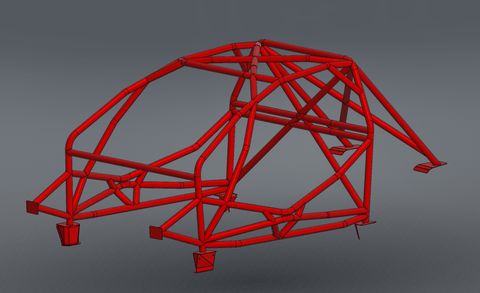

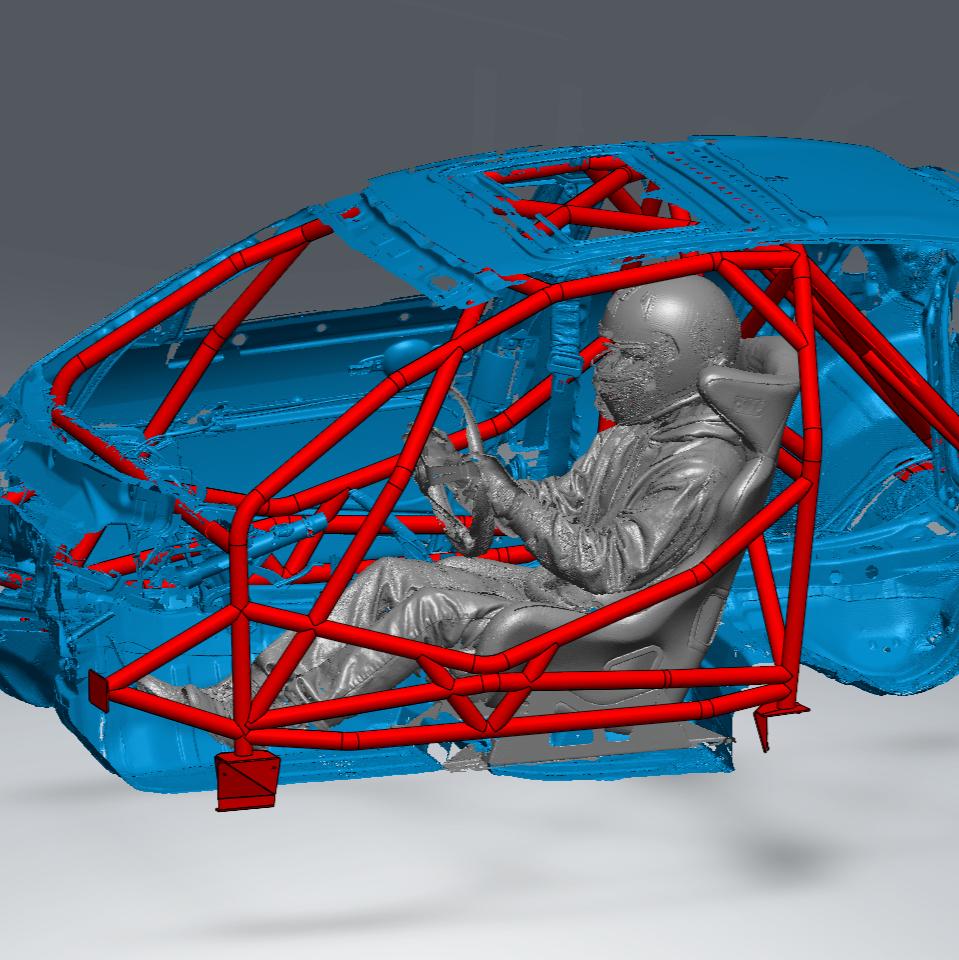

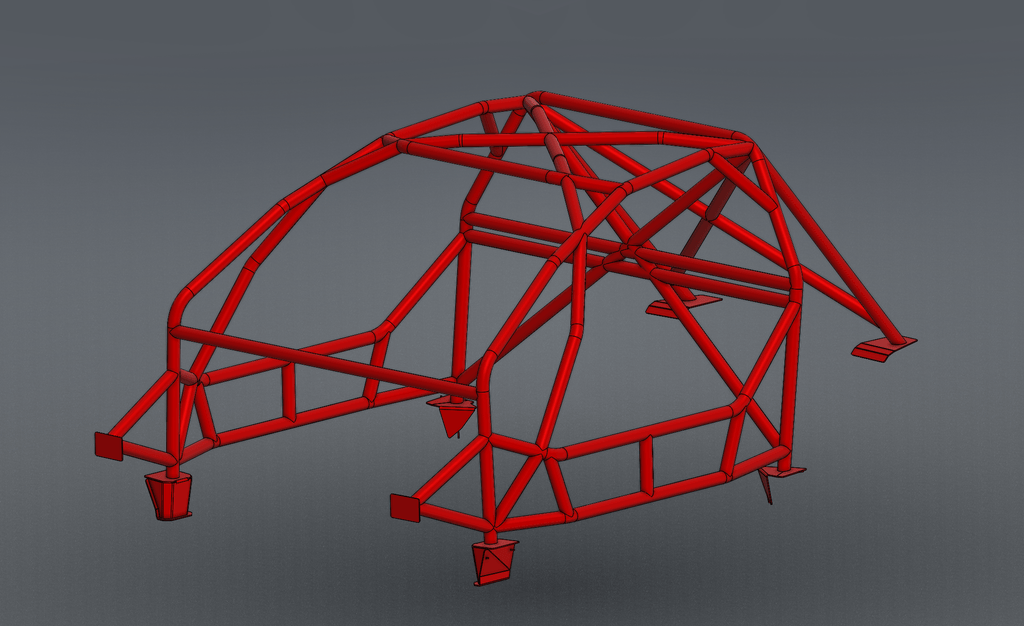

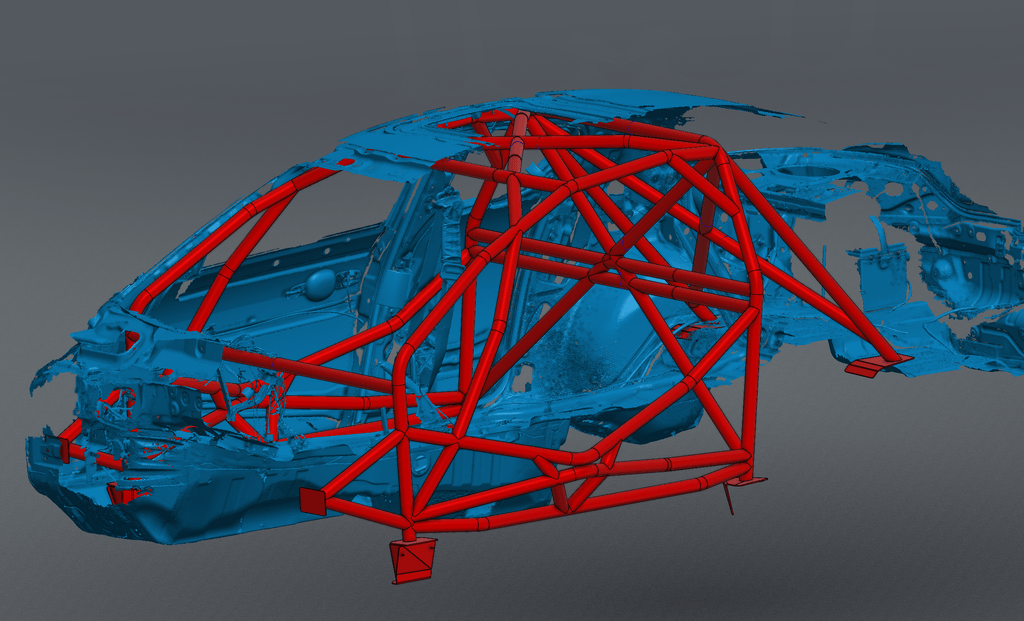

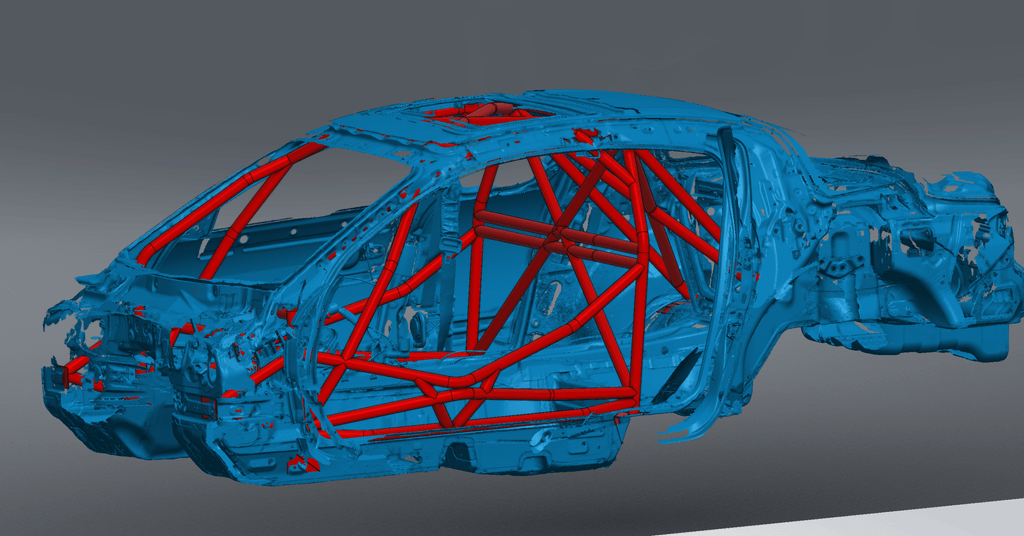

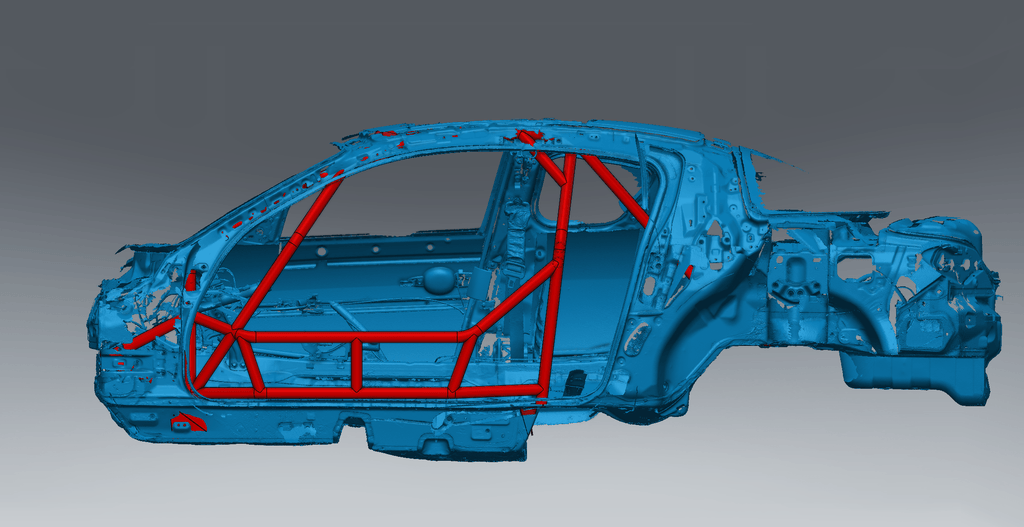

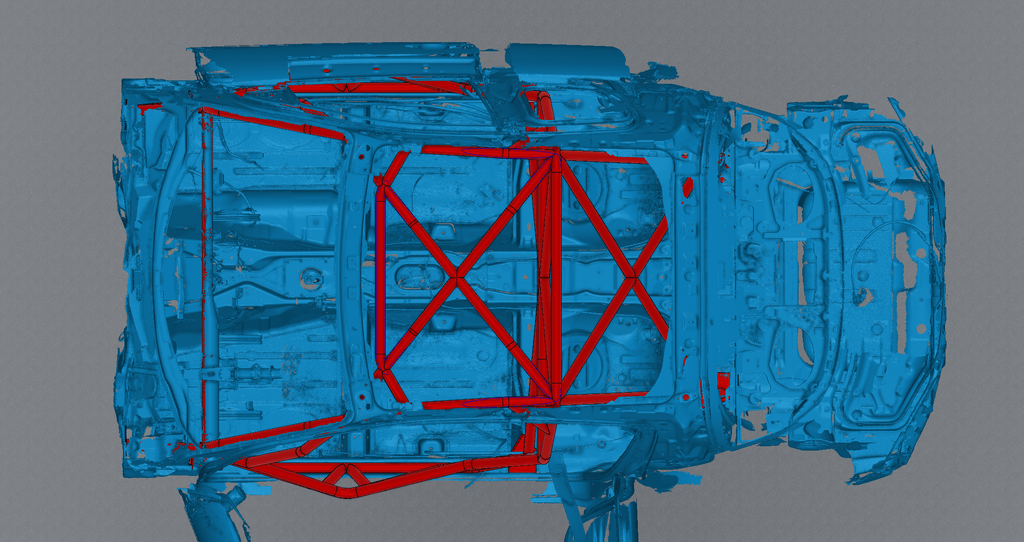

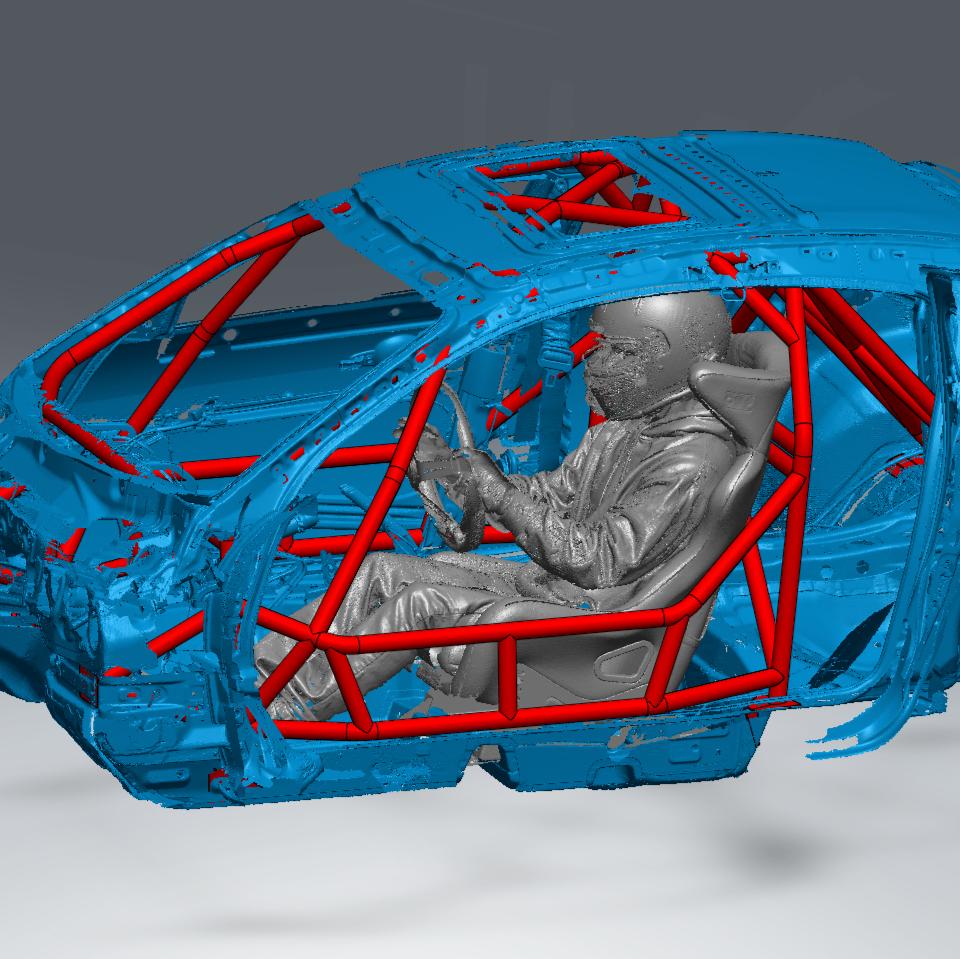

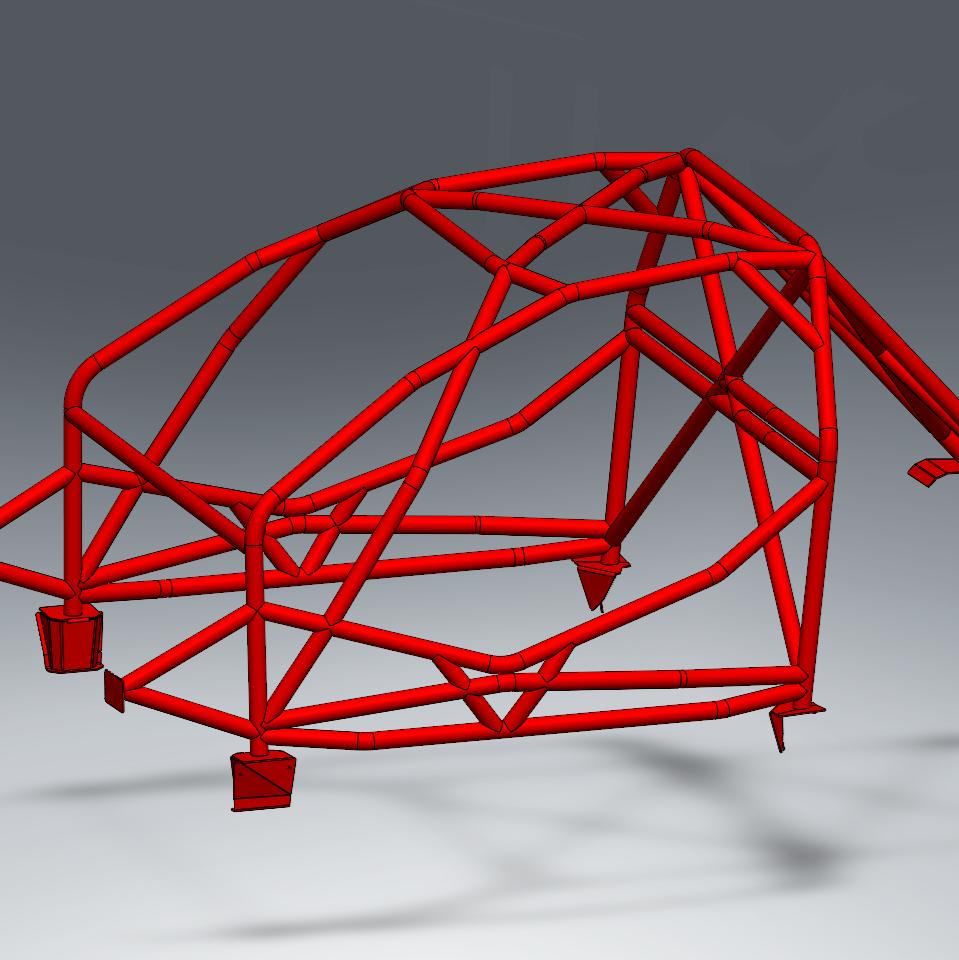

The CageKits RX8 Formula Drift / Road Race Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with FD, NASA, or SCCA standards depending on the weight of the gutted chassis. Built from 1.5″ x .120″ 1020-1026 DOM tubing. Designed specifically for the Mazda RX8 (2003-2012), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
Made to Order — Ships Upon Completion
Door Bar Styles

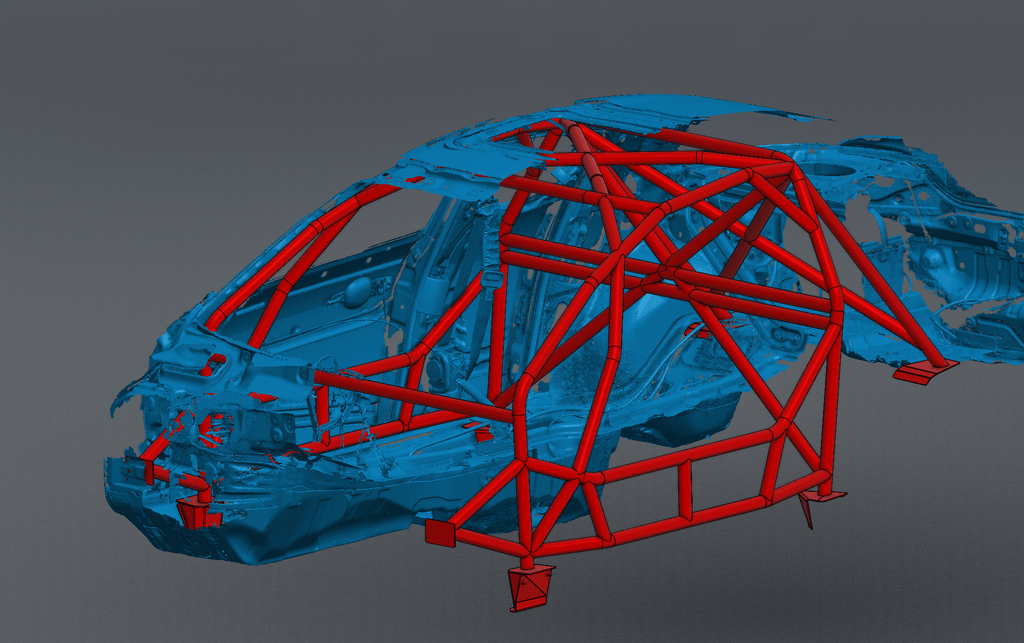

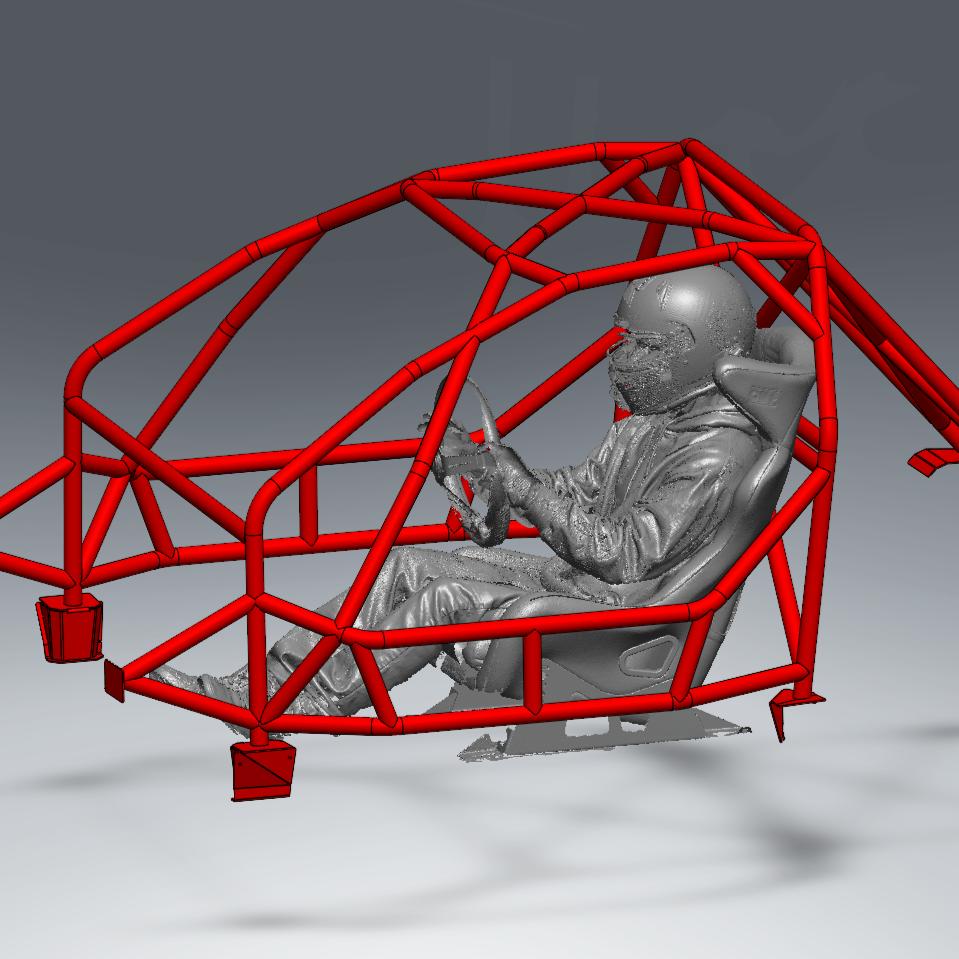

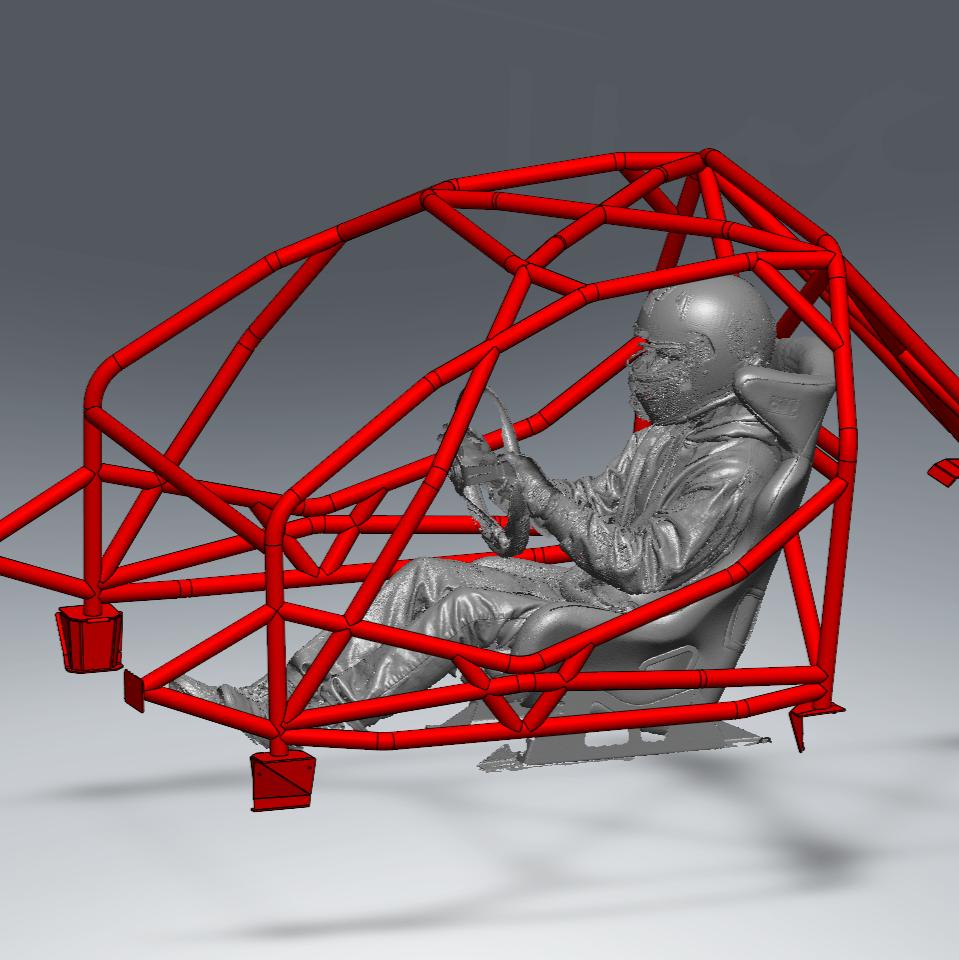

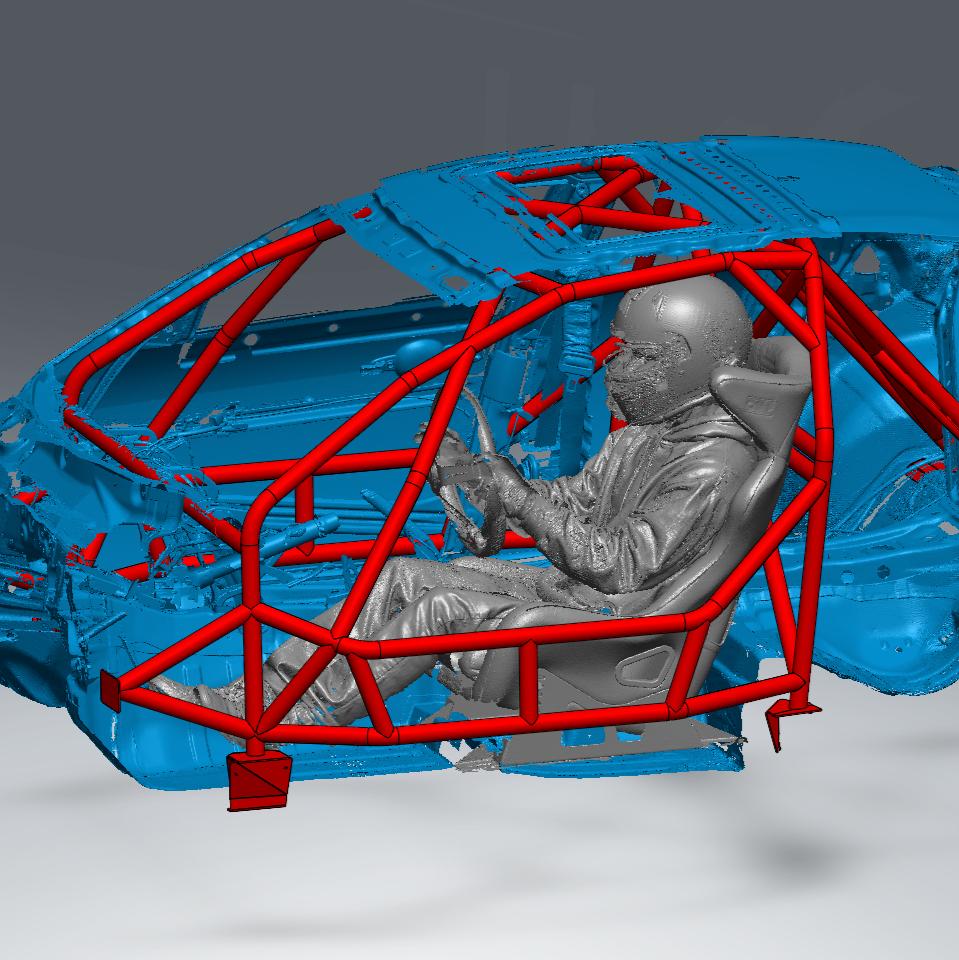

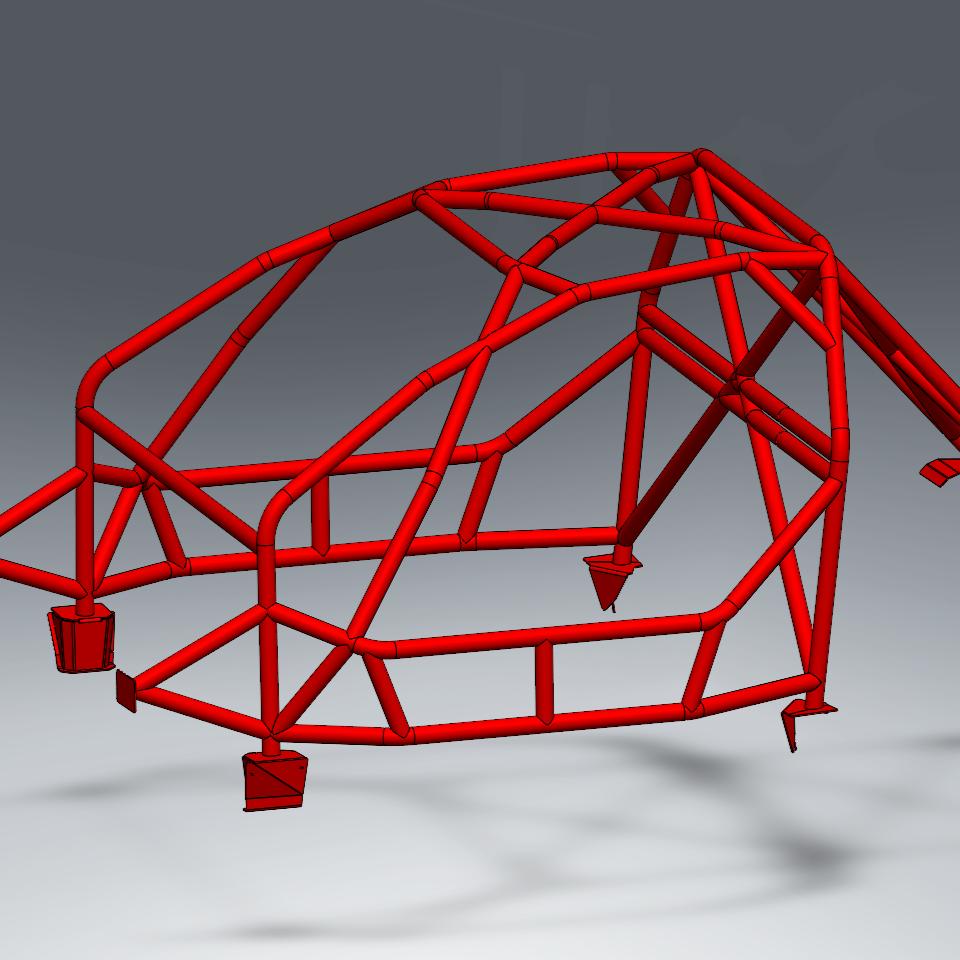

This kit includes your choice of door bar layout, each designed for proper fitment and ease of installation within the RX8 chassis. Both styles provide equal structural integrity and meet Formula Drift AND Road Race specifications. Options include Ladder-Style or X-Style door bars.
Door Bar Depth
The kit offers two door bar depth options to suit your interior and window setup. Both options require a gutted chassis for installation.
-
Gutted Door Bar Depth – Sits deep within the door cavity for maximum side clearance. Full removal of OEM door cards is required. Windows will not remain.
-
Non-Gutted Door Bar Depth – Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.5″ DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification
- Precision-bent to match Mazda RX8 chassis geometry
- NASA / SCCA–inspired design and layout
- Supersedes Drift Spec structures in tube sizing and layout requirements
Installation & Compliance Notes
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
