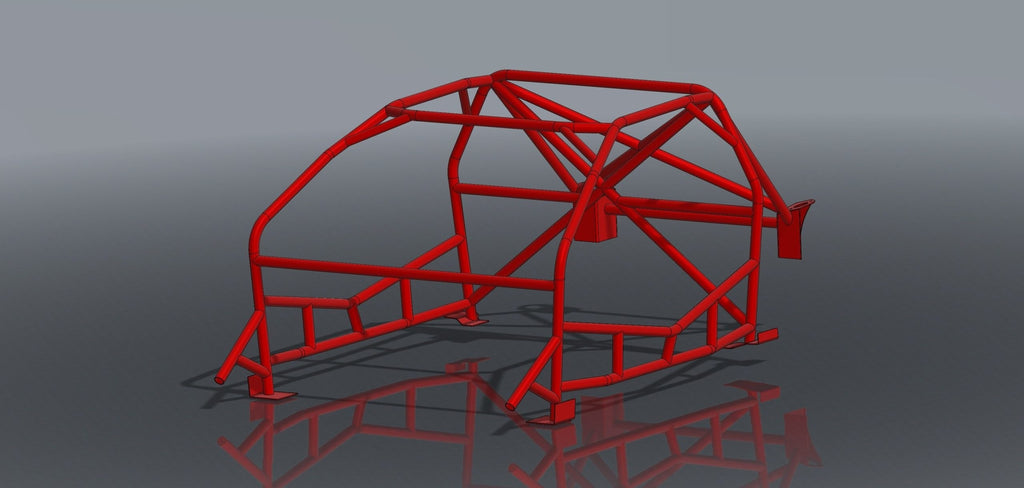

The CageKits R34 GT-R FD Spec Roll Cage Kit is engineered for exceptional precision, rigidity, and chassis fitment. Built from 1.5″ x .095″ 1020–1026 DOM tubing, each tube is CNC-notched, precision-bent, and laser-etched for perfect alignment and an efficient, professional installation. Designed specifically for the Nissan Skyline R34 GT-R (1999-2002). This kit provides a true motorsport-grade foundation — no custom fabrication or guesswork required.
Made to Order — Ships Upon Completion
Door Bar Options
This kit is available in two configuration styles, each designed to fit correctly within the R34 interior while meeting Formula Drift-style structural expectations:
- Non-Gutted Ladder Door Bar Roll Cage – Designed for builds retaining functional windows. The ladder-style bars sit closer to the interior to allow window operation. OEM door cards cannot be fully retained; trimming or replacement with a simple panel is necessary.
- Gutted X Door Bar Roll Cage – A fully gutted variation with bars positioned deep into the door cavity for maximum side clearance. Requires removal of OEM door cards and window components.
Technical Details
- Built from 1.5″ x .095″ 1020–1026 DOM tubing
- CNC-notched joints for exceptionally tight and consistent fitment
- Laser-etched tube identifiers for fast, error-free assembly

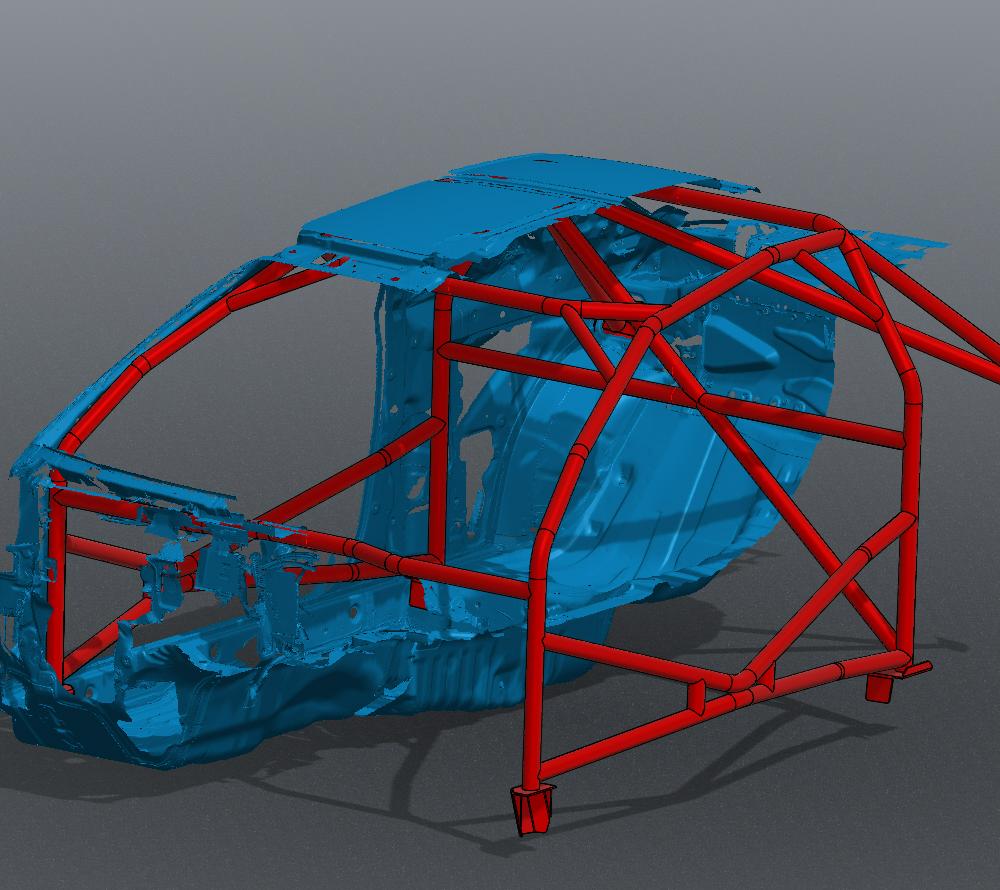

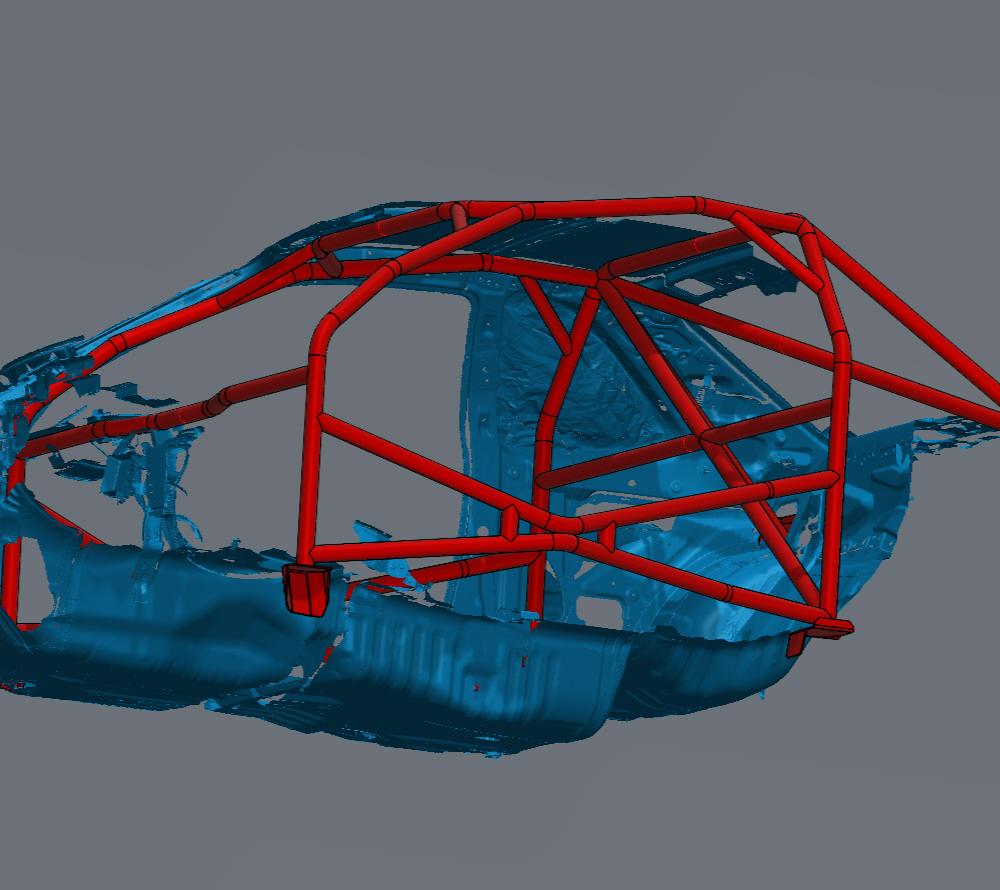

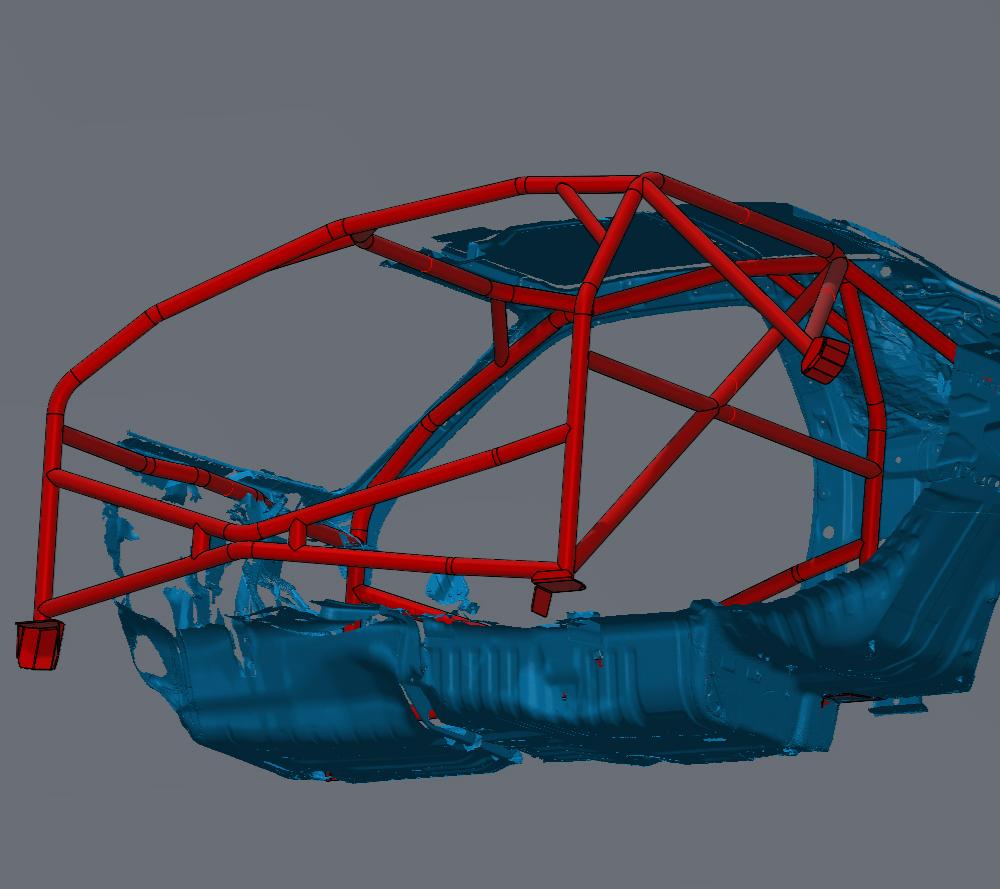

- Precision-bent to match R34 GT-R chassis geometry
Installation & Compliance Notes
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
Want to see it in action? Check out our Instagram.
Need install help? Media tab’s got you.
