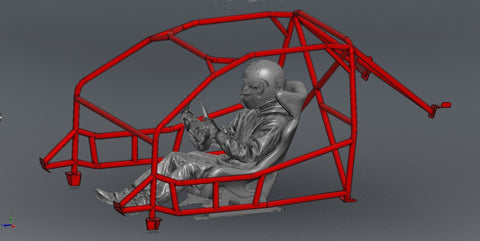

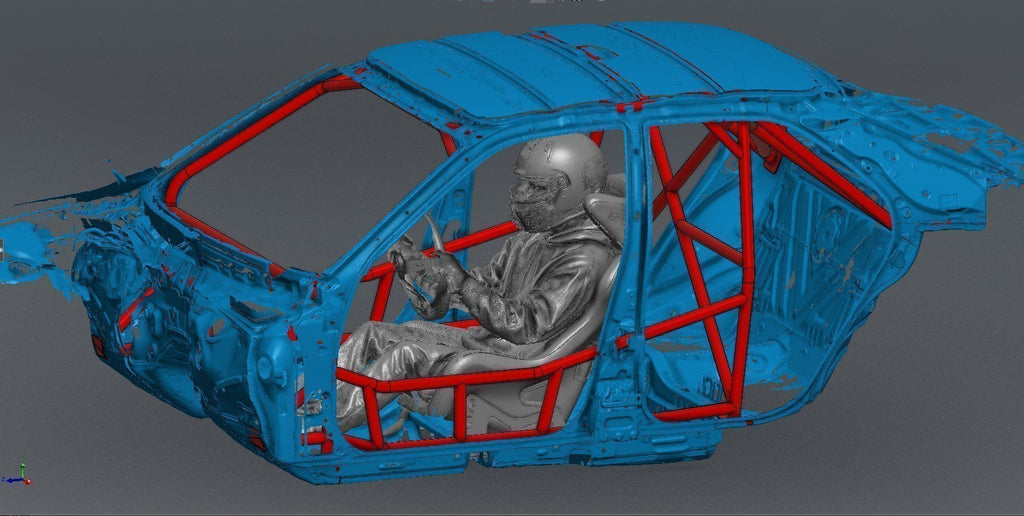

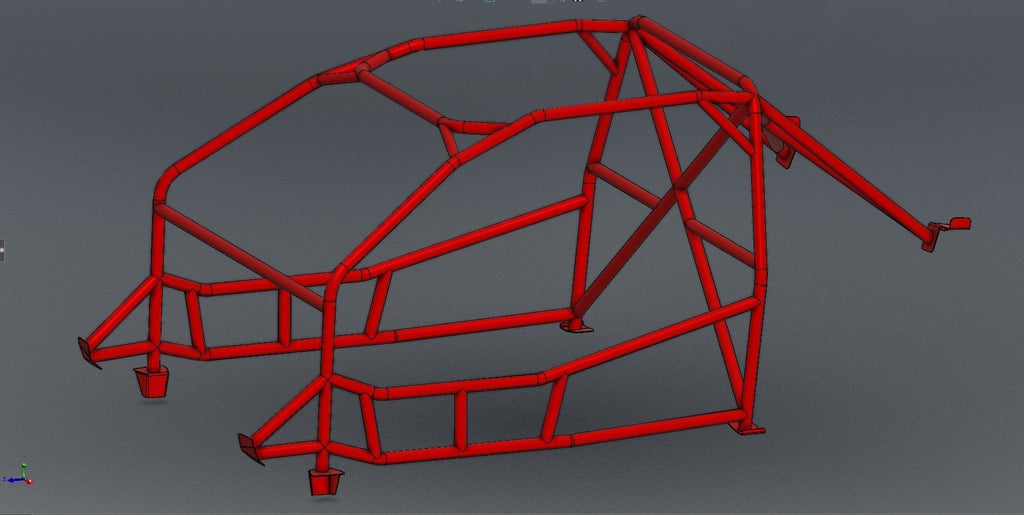

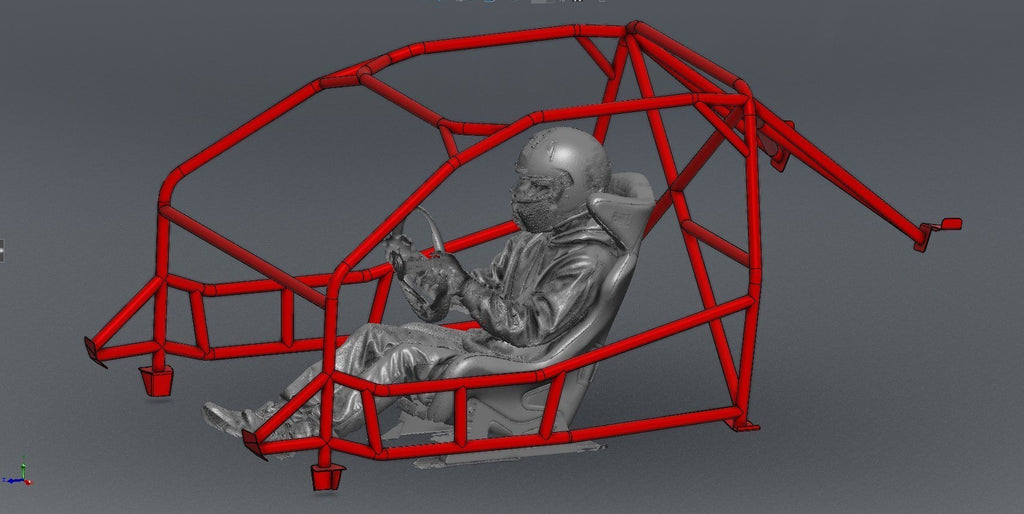

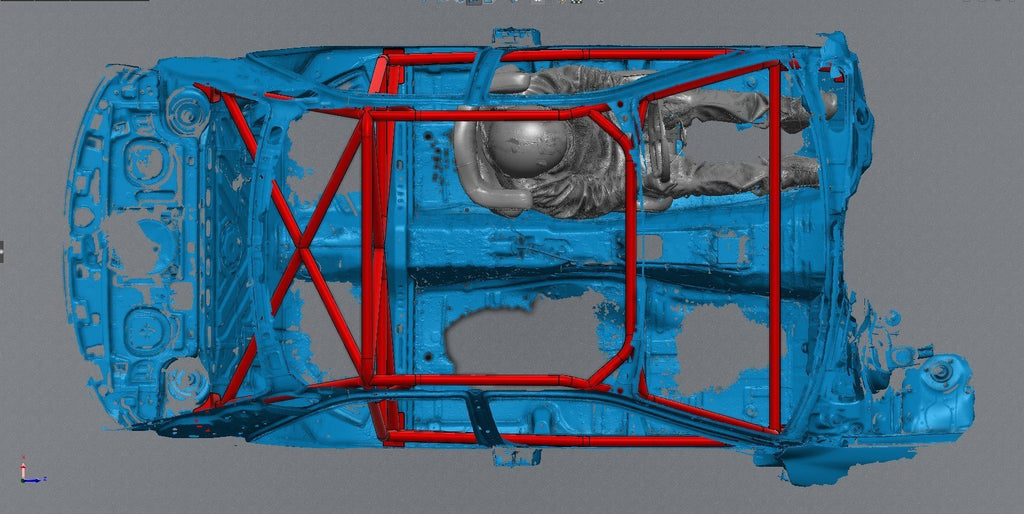

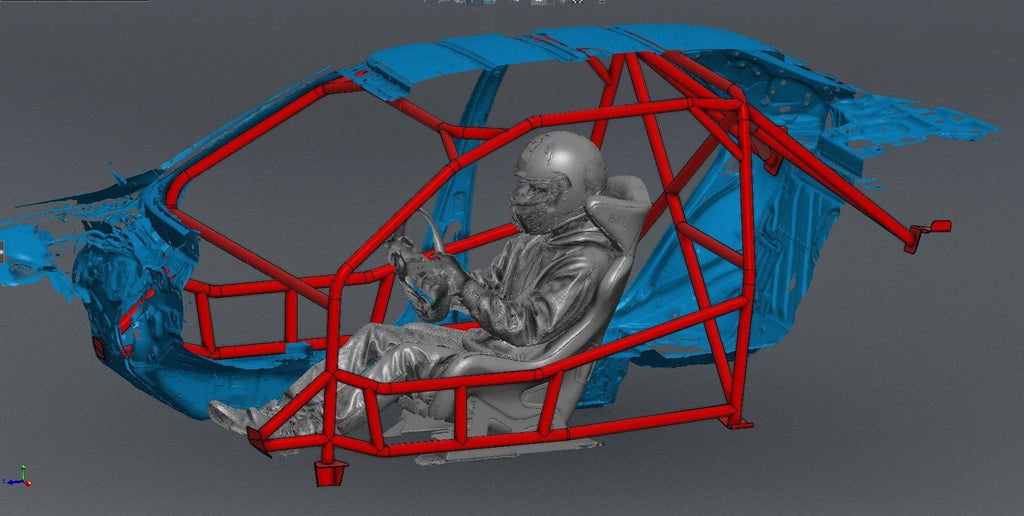

The CageKits JZX FD Spec Roll Cage Kit is engineered for exceptional precision and chassis fitment. Built from 1.5″ x .095″ 1020–1026 DOM tubing, each bar is CNC-notched, precision-bent, and laser-etched for perfect alignment and an accurate, straightforward install. Designed specifically for the Toyota JZX100 Chaser (1996-2001), this kit delivers an exact fit within the chassis, providing a clean, professional foundation for your build — no custom fabrication required.
Made to Order — Ships Upon Completion
Door Bar Styles and Depth
This kit includes Ladder Door Bars and requires a gutted chassis for installation.
-
Non-Gutted Door Bar Depth – Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.5″ x .095″ 1020–1026 DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification and positioning
- Precision bent to match JZX100 chassis geometry
Installation & Compliance Notes
-
Sunroof Removal: The sunroof must be removed to install this roll cage.
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
Want to see it in action? Check out our Instagram.
Need install help? Media tab’s got you.
