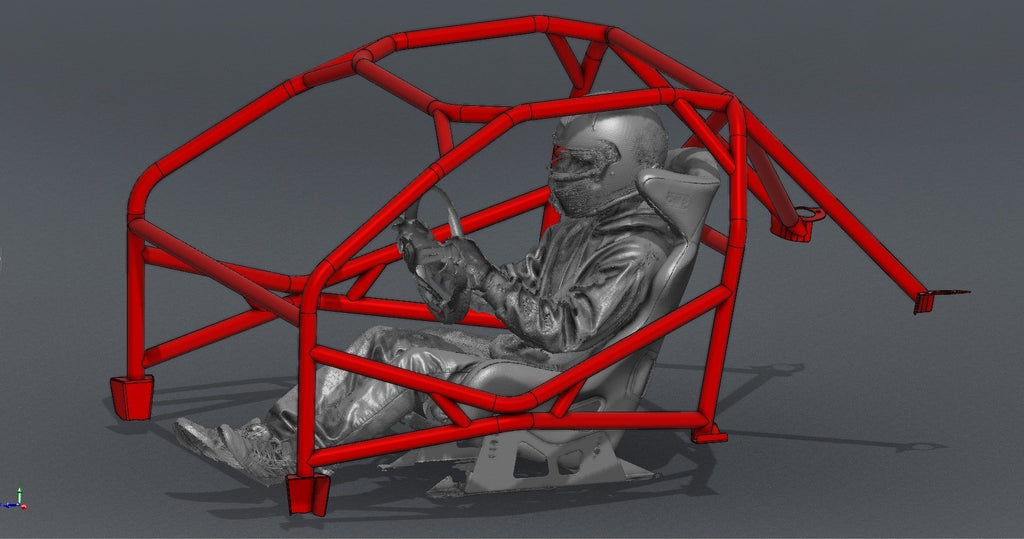

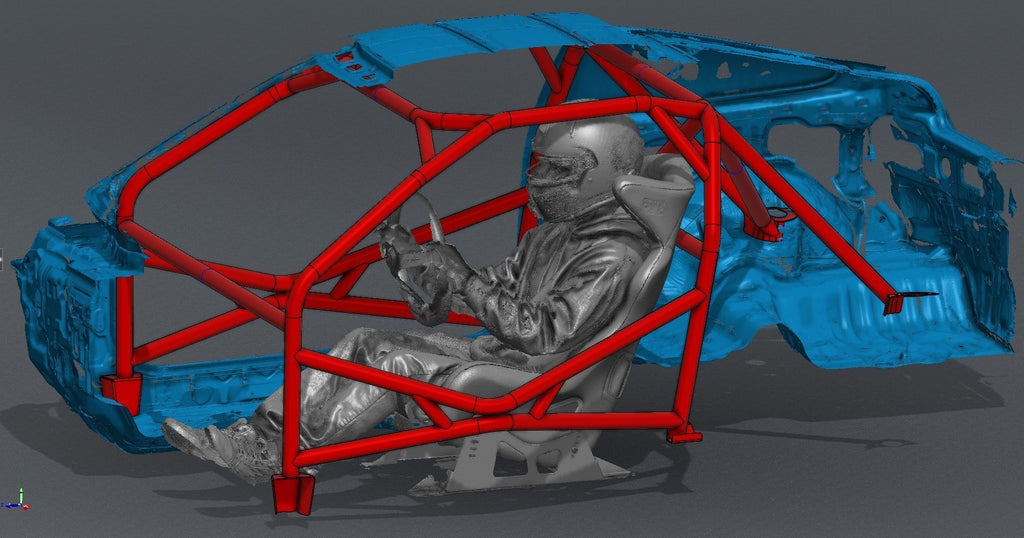

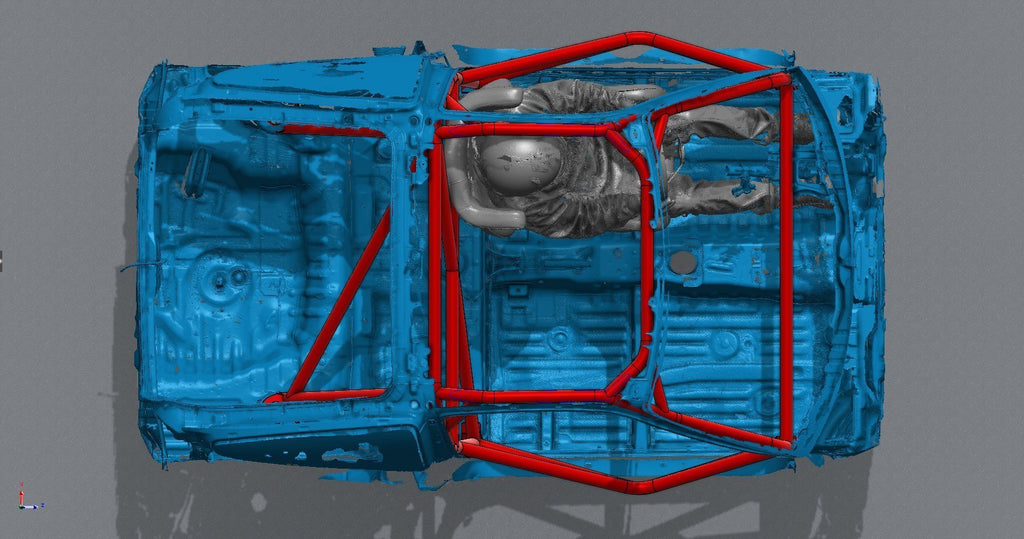

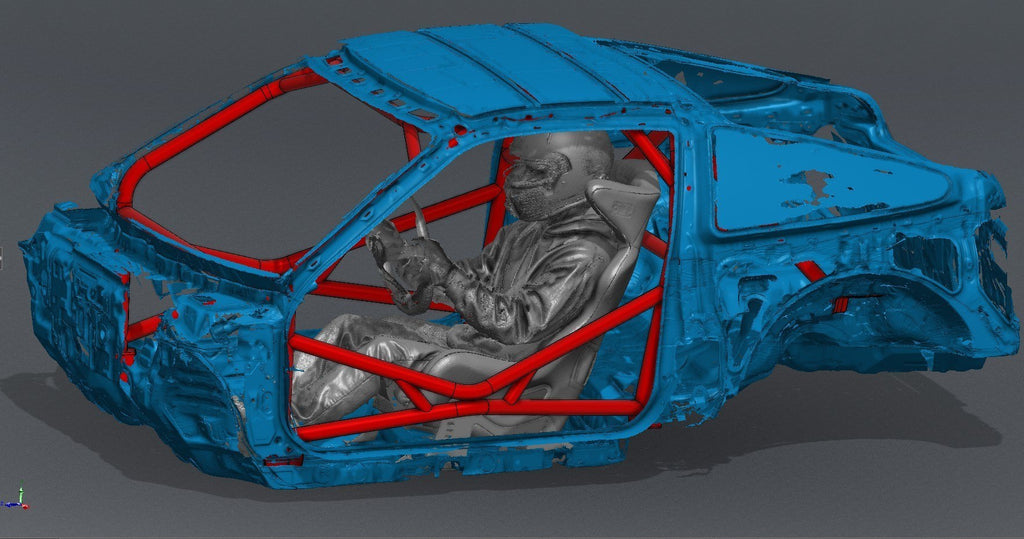

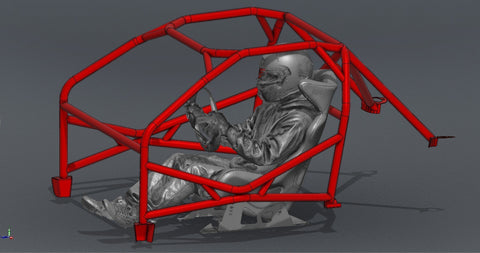

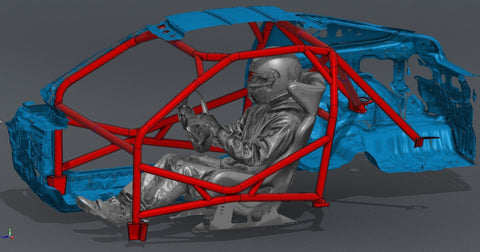

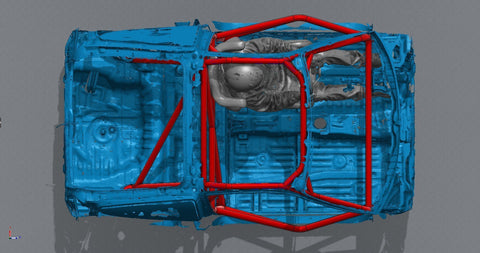

The CageKits CRX Road Race Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with NASA or SCCA standards depending on the weight of the gutted chassis. Built from 1.75″ x .095″ 1020-1026 DOM tubing. Designed specifically for the Honda CRX (1988-1991), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
Made to Order — Ships Upon Completion
Tubing Configuration
(Main Structure – 1.75″ x .095″ DOM):
Main Hoop, A-Pillars, Front Top Bar, Door Bars, Rear Down Bars, Dash Bar, Diagonals, Door Bar Supports, Tube Gussets, and Harness Bar
Door Bar Layout
The CRX Road Race Spec Roll Cage Kit includes a standardized door bar package designed for strength and compliance:
-
Door Bar Style: X-Style
-
Gutted Door Bar Depth – Sits deep within the door cavity for maximum side clearance. Full removal of OEM door cards is required. Windows will not remain.
Technical Details
- Built from 1.75″ x .095″ DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification
- Precision-bent to match CRX chassis geometry
- NASA inspired design and layout
Installation & Compliance Notes
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
Want to see it in action? Check out our Instagram.
Need install help? Media tab’s got you.
