SKU: ZN6-A-2104 – 1.75″ x .095″ Main Structure
Road Race Spec – Made to Order – Ships When Complete
Overview

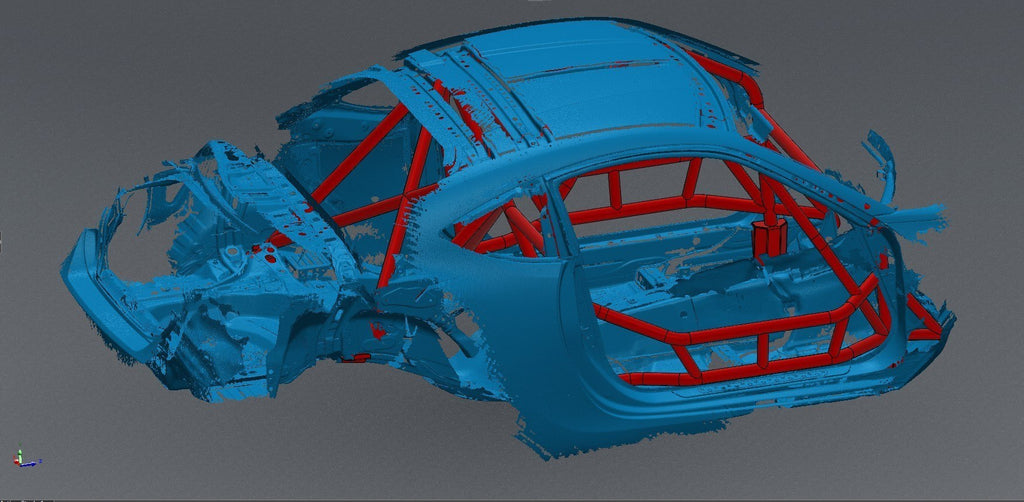

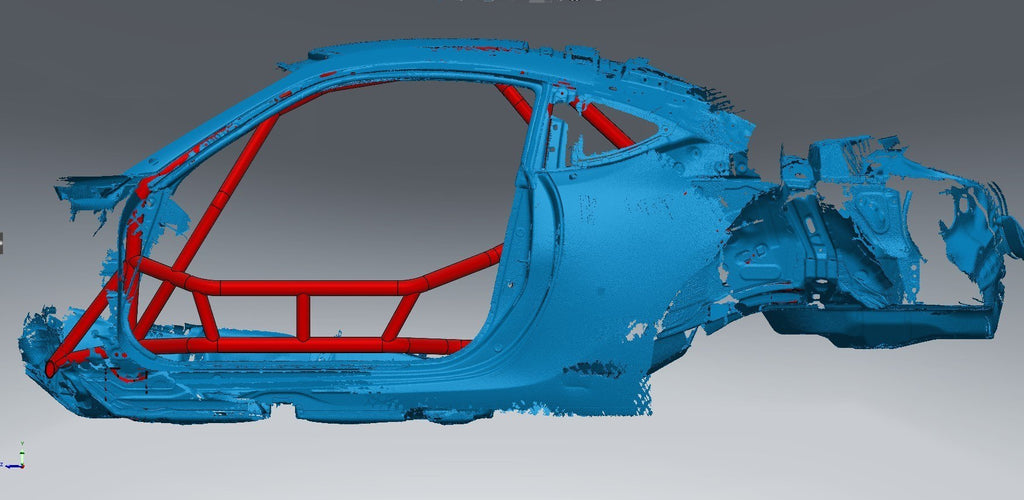

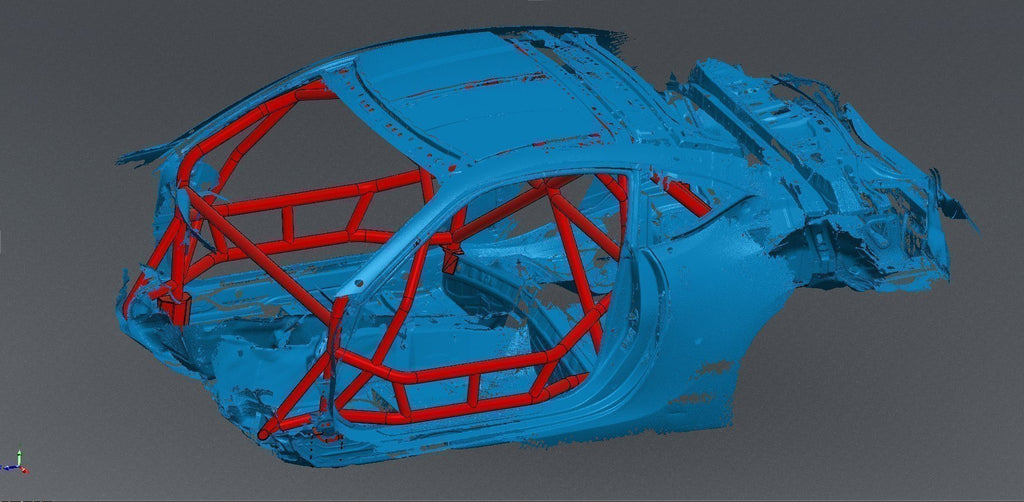

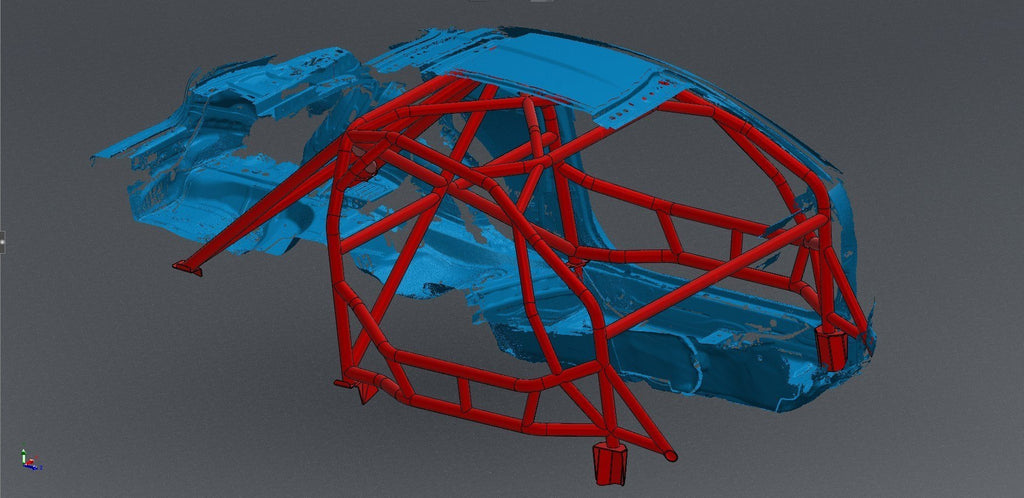

The ZN6 Road Race Non-Gutted Roll Cage Kit with Ladder-Style Door Bars is engineered for dedicated track use while maintaining key street-friendly features. Built from 1.75″ x .095″ DOM tubing in the main structure, this kit is designed to meet NASA tech compliance for road racing applications.
Supporting bars are constructed from 1.5″ x .095″ DOM tubing, keeping strength high and unnecessary weight low. The non-gutted configuration allows for trimmed factory door panels and functional windows.
Key Features
Vehicle Fitment: 2012–2020 Scion FR-S / Toyota 86 / Subaru BRZ (Chassis: ZN6 / ZC6)
Material Options:
-
Main Structure: 1.75″ x .095″ DOM (NASA Tech Spec)
-
Supporting Structure: 1.5″ x .095″ DOM
Design and Construction:
-
Weld-in kit – requires welding and chassis prep
-
CNC Notched & Mandrel Bent Tubing for fast, accurate assembly
-
Laser-Etched Fitment Guides for consistent tube alignment
-
Ladder-Style Door Bars for improved accessibility and side impact protection
-
Main structure includes: Main Hoop, Front Top Bar, Rear Down Bars, A-Pillars
-
Supporting structure includes: Ladder Door Bars, Dash Bar, Door Bar Supports, Tube Gussets
Non-Gutted Configuration:
-
Requires trimming of OEM door panels
-
Retains functional manual or power windows
-
Ideal for endurance cars or dual-purpose builds
Description
The ZN6-A-2104 Road Race Roll Cage Kit offers serious racers a high-spec solution with the flexibility to retain partial interior comfort and window function. The non-gutted layout allows for a cleaner install in builds that see occasional street time or long track days.
All tubing is precision-machined with CNC notches and laser alignment marks to ensure efficient, hassle-free installation. The ladder door bars provide excellent ingress/egress while still offering significant side impact resistance—perfect for drivers who value practicality without sacrificing performance.
Important Notes
-
Made to order – All sales are final
-
Door panel trimming required to clear ladder door bars
-
Windows remain functional
-
Always verify compliance with your specific sanctioning body rules before ordering
