FC RX7 BOLT-ON TUBE FRONT AND LRS KIT – MADE TO ORDER WILL SHIP ONCE COMPLETED

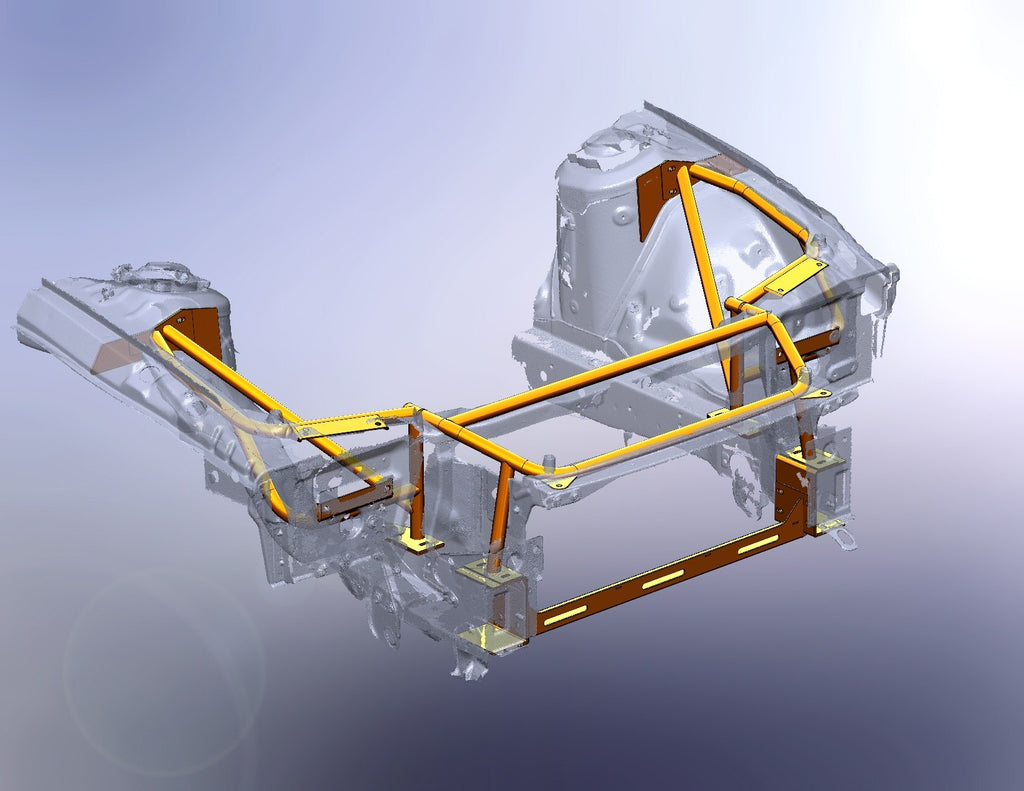

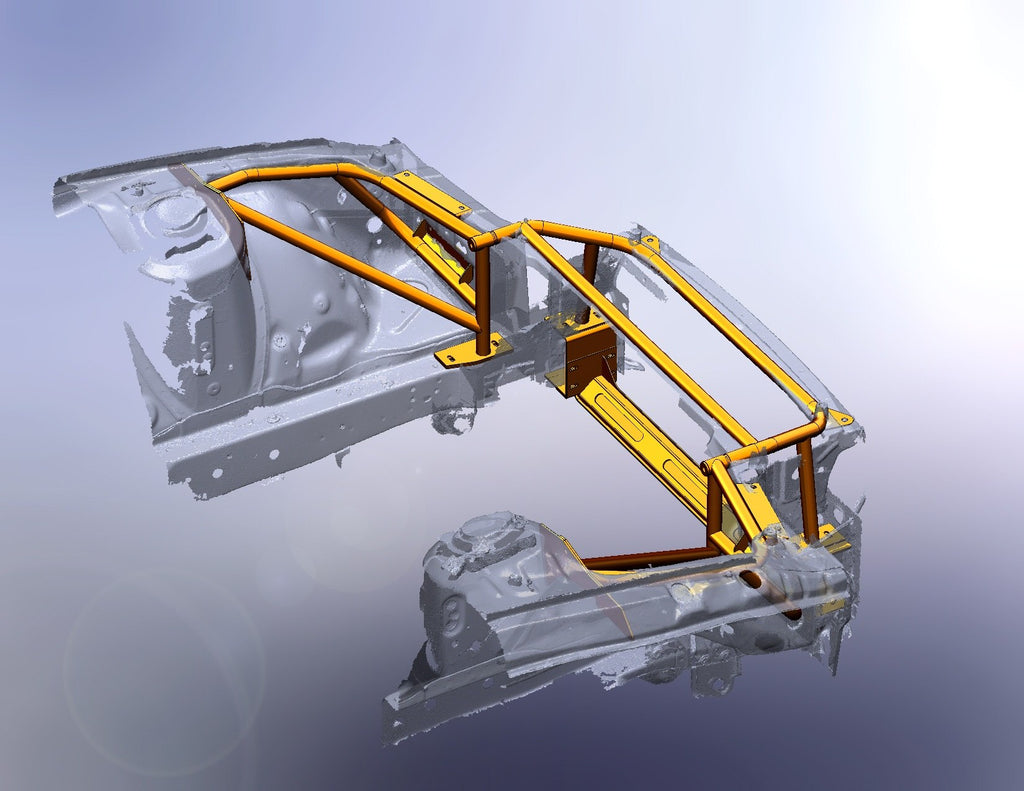

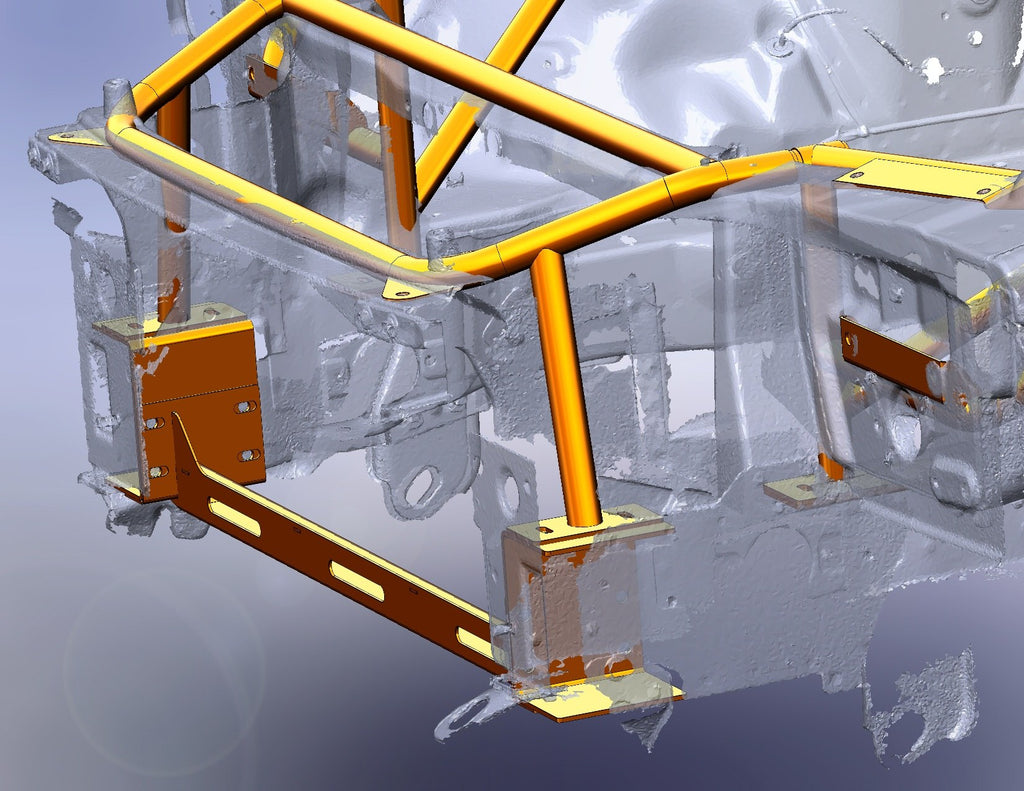

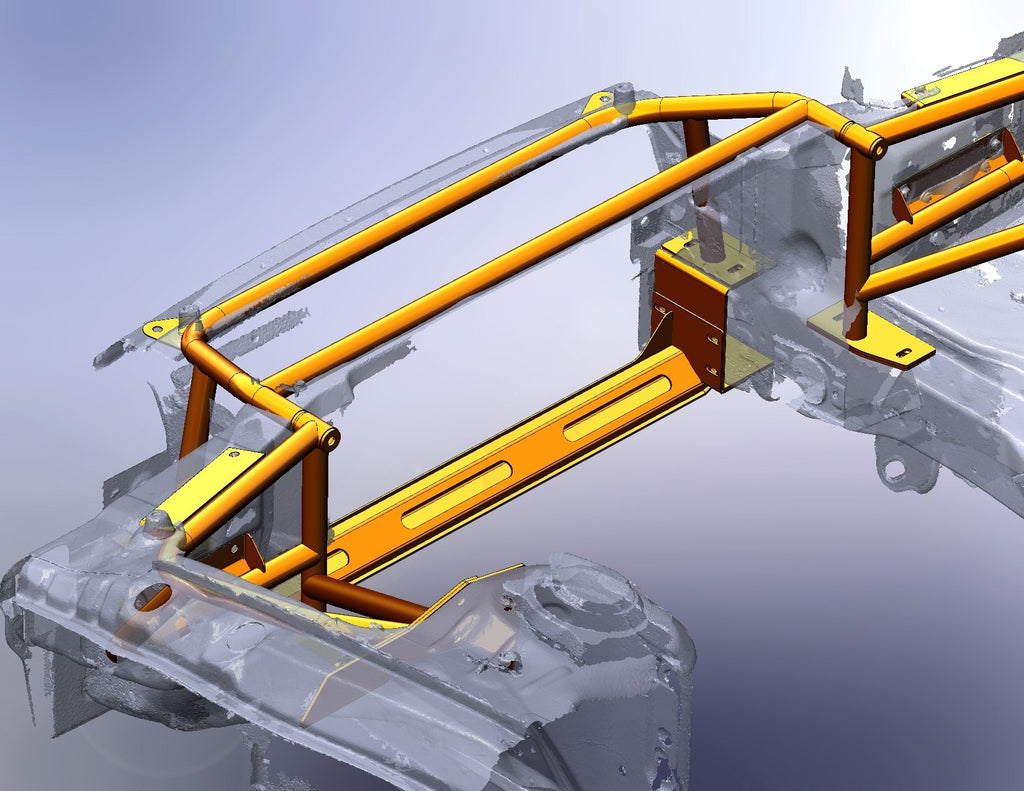

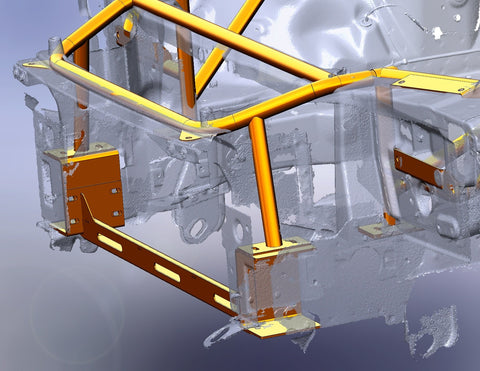

This tube front is designed to fit the FC RX7. The kit comes stitch-welded with steel threaded inserts for all bolted connections.
There is the option for MIG or TIG welded.
TUBE FRONTS HAVE A CUSTOM LEAD TIME – PLEASE REACH OUT FOR A LEAD TIME ESTIMATE [email protected]
Features:
- This kit comes with the Tube Front as well as the LRS
- Adds an additional 1.25″ of room for a radiator
- Maintains factory popup light bracket positioning
- Maintains hood latch position
- Stitch-welded with steel threaded inserts for bolted connections
- Option for MIG or TIG welded
- Fender Tabs included
Description:

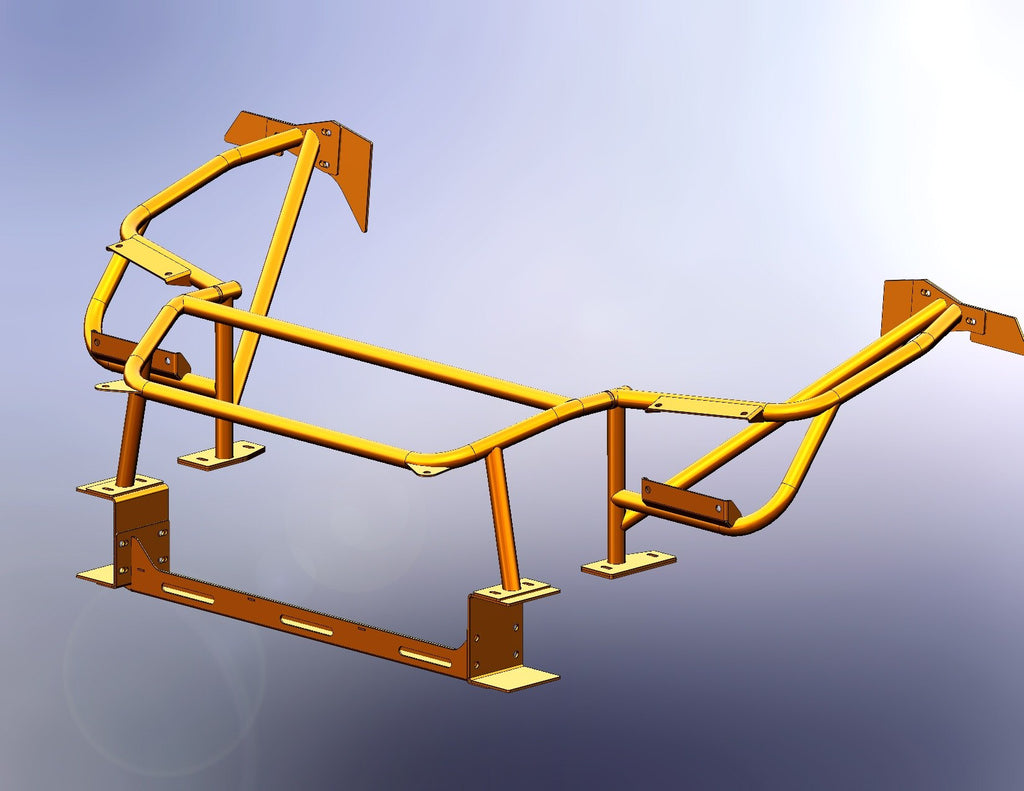

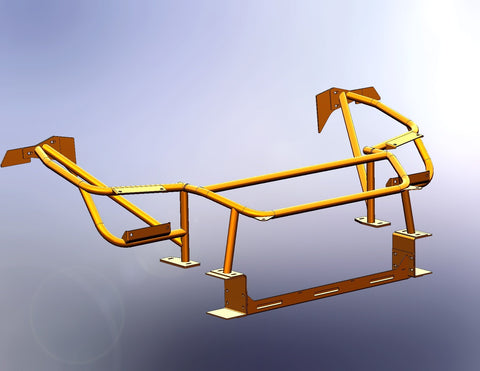

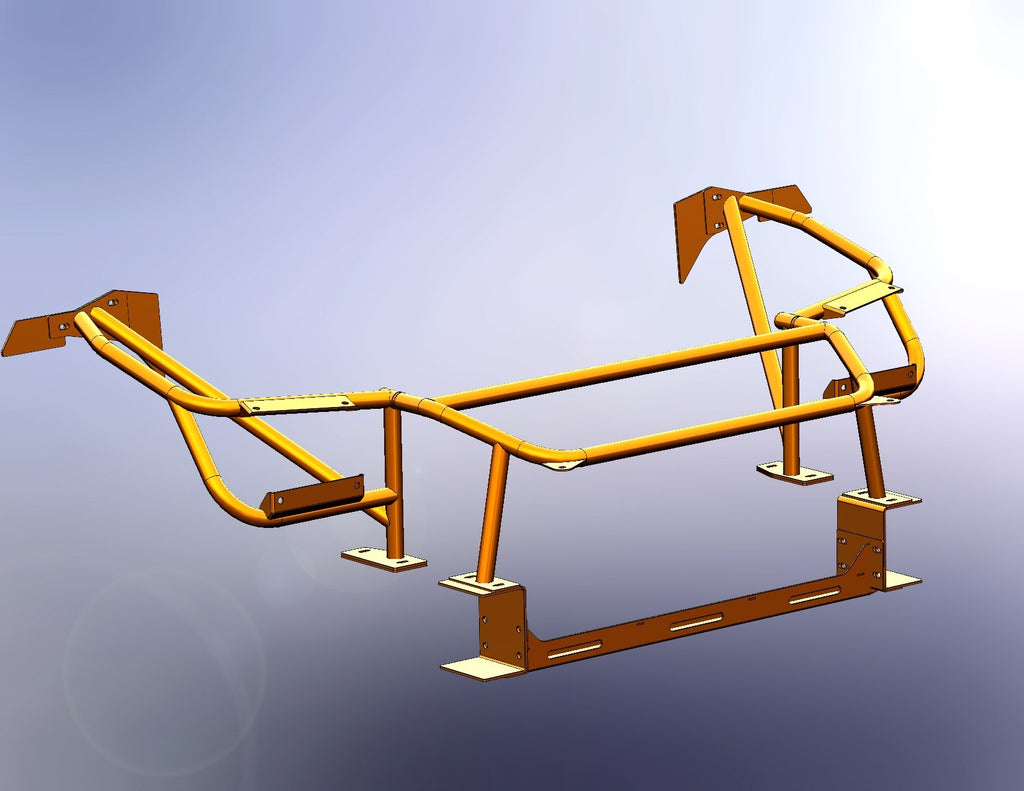

The FC RX7 Tube Front comes fully CNC laser notched and CNC mandrel bent. It’s fully welded in a precision fixture in order to maintain accuracy. Metric fasteners are used to retain the factory hardware during your installation.

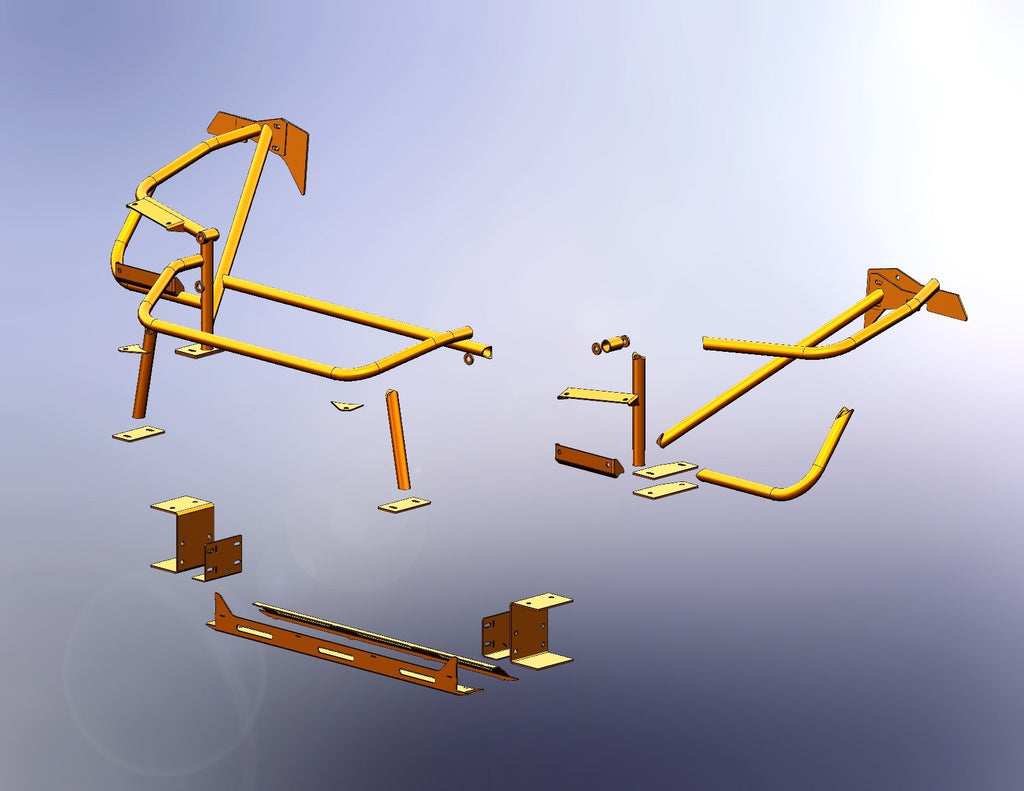

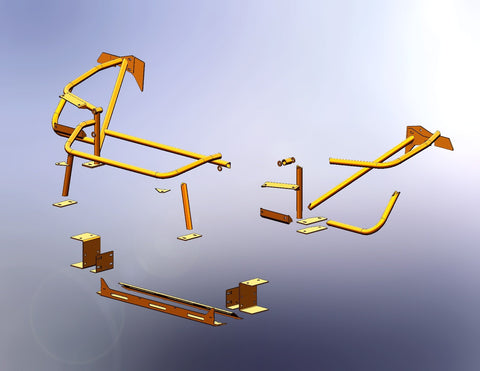

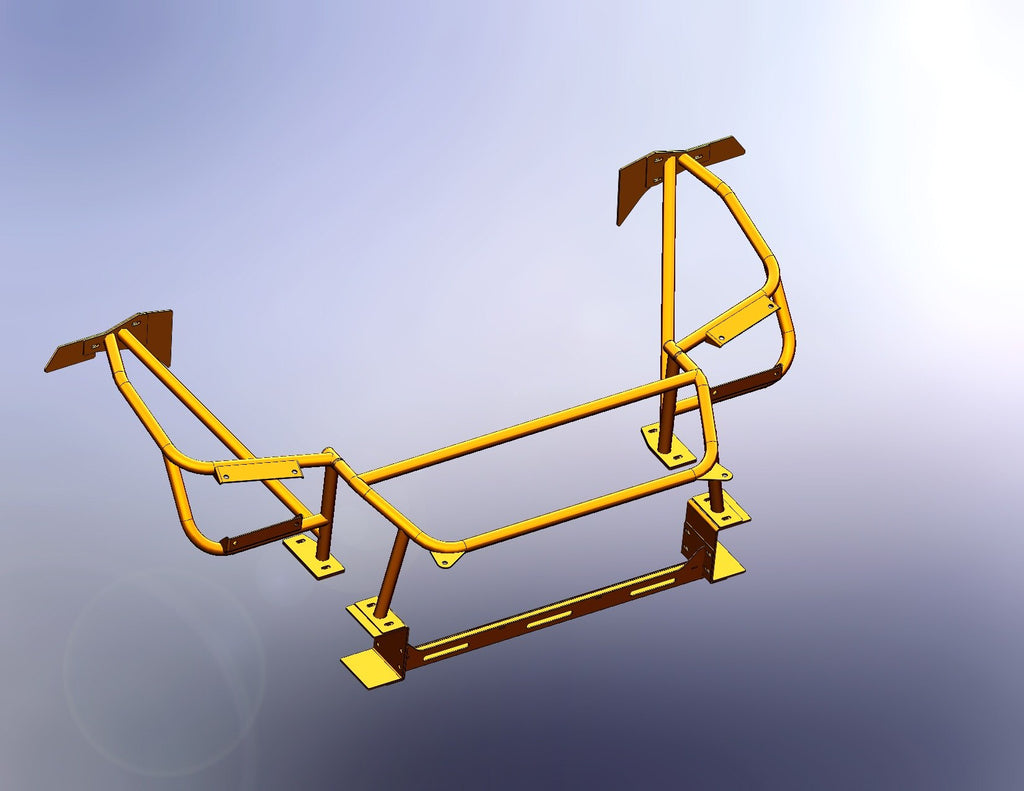

This kit is fully modular and comes apart in 4 pieces: DS Tubes, PS Tubes, Lower Rad Support, and Upper Rad Support. Tubing is 1″ x .095″ ERW and sheet metal is a mix of 14ga and 11ga O&P steel.
Want to see it in action? Check out our Instagram.
Need install help? Media tab’s got you.
