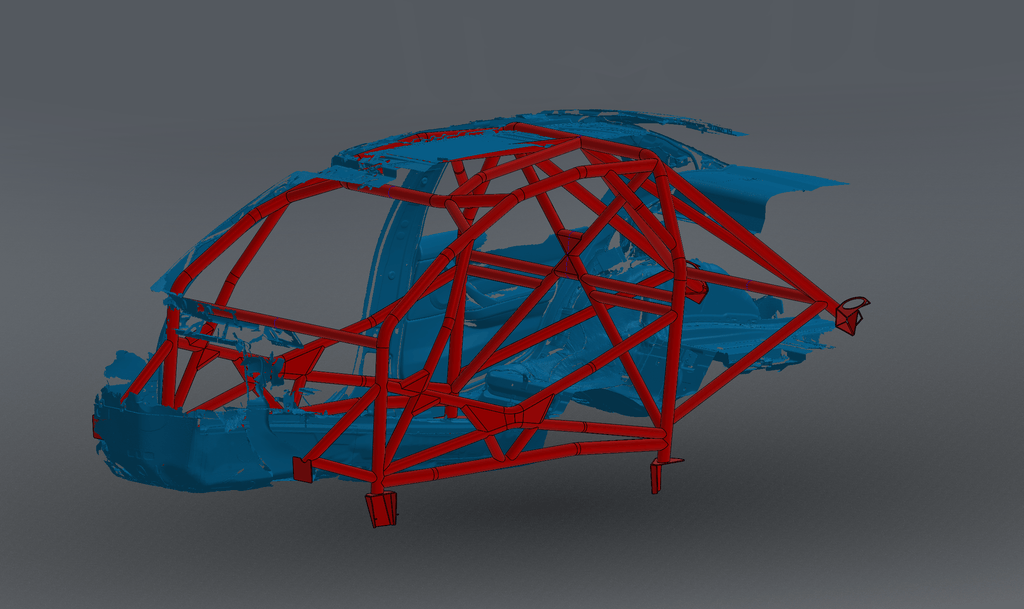

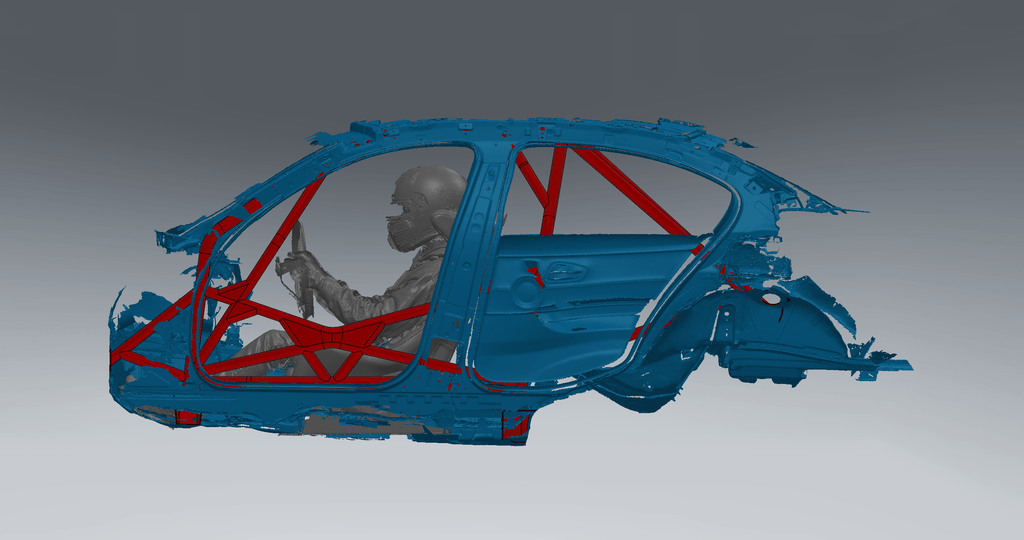

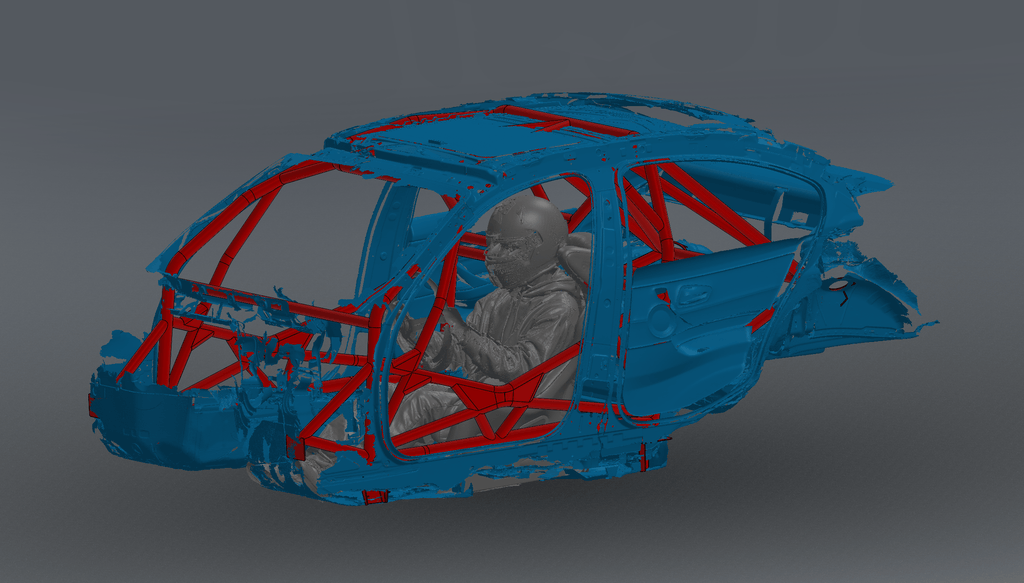

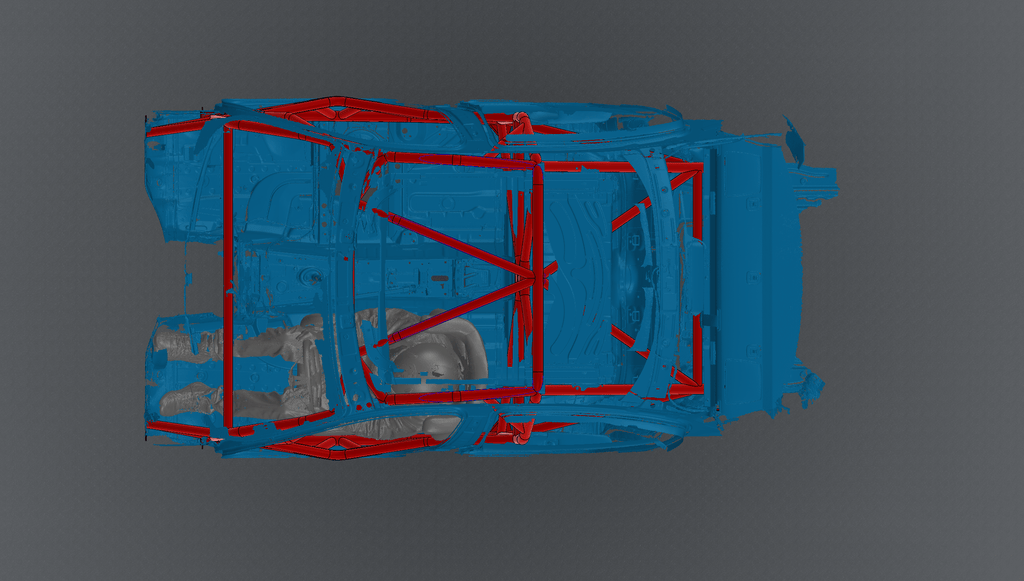

The CageKits E90 Sedan Rally Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with FIA Article 253 standards. Built from a combination of 1.75″ x .120″ 1020-1026 DOM and 1.5″ x .095″ 1020-1026 DOM tubing. The Rally platform uses larger primary structure sizes and enhanced geometry—surpassing both our Road Race Spec and Drift Spec kits in overall rigidity and safety-focused design. Designed specifically for the BMW E90 Sedan (2004-2011), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
Made to Order — Ships Upon Completion

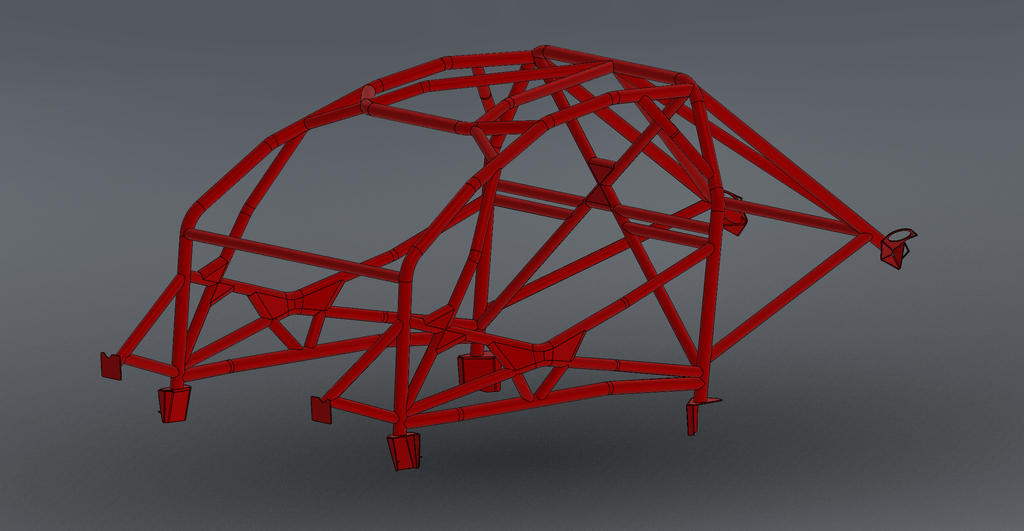

Tubing Configuration
(Main Structure – 1.75″ x .120″ DOM):
Main Hoop, A-Pillars, Front Top Bar, Rear Down Bars, and Sill Bars
(Supporting Structure – 1.5″ x .095″ DOM):
Door Bars, Roof Bars, FIA Bars, Diagonals, Harness Bar, Dash Bar, Rear Strut Bar, Door Bar Supports, Anti-Intrusion Tubes, and Tube Gussets
Reinforcements
This kit includes 16 Ga steel taco gussets pre-cut for the Door Bars, Main Hoop and A-pillar bars, providing increased strength and rigidity throughout the cage structure.
Door Bar Layout
The E90S Rally Spec Roll Cage Kit includes a standardized door bar package designed for strength and compliance:
-
Door Bar Style: X-Style
-
Door Bar Depth: Non-Gutted *Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.75″ x .120″ DOM and 1.5″ x .095″ DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification
- Precision-bent to match E90S chassis geometry
- Includes 16 Ga taco gussets for key junctions
- FIA Article 253–inspired design and layout
- Supersedes Road Race and Drift Spec structures in tube sizing and layout requirements
- Standardized Rally door bar configuration (Non-Gutted, X-Style)
Installation & Compliance Notes
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
