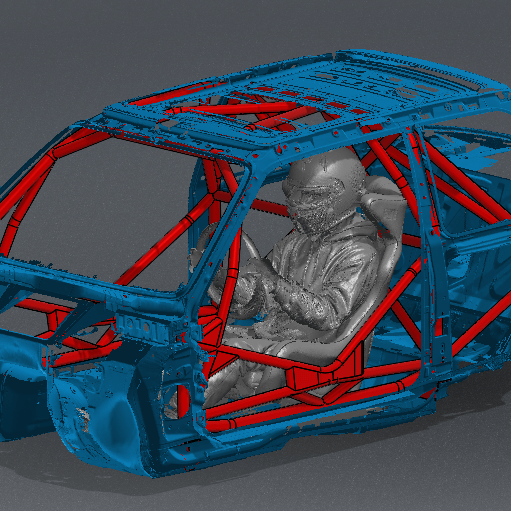

The CageKits E30 Coupe Rally Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with FIA Article 253 standards. Built from a combination of 1.75″ x .120″ 1020-1026 DOM and 1.5″ x .095″ 1020-1026 DOM tubing. The Rally platform uses larger primary structure sizes and enhanced geometry—surpassing both our RoadRace Spec and Drift Spec kits in overall rigidity and safety-focused design. Designed specifically for the BMW E30 Coupe (1982-1991), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
Made to Order — Ships Upon Completion
Tubing Configuration
(Main Structure – 1.75″ x .120″ DOM):
Main Hoop, A-Pillars, Door Bars, Front Top Bar, Rear Down Bars, Sill Bars, Main Hoop Diagonals, Harness Bar, and Dash Bar
(Supporting Structure – 1.5″ x .095″ DOM):

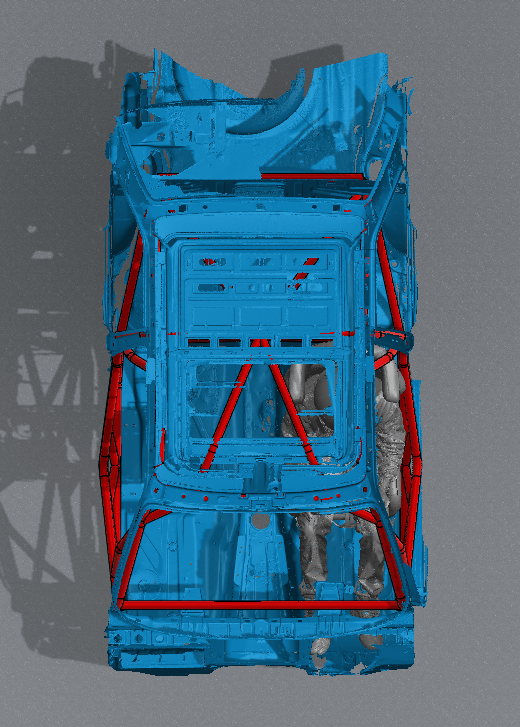

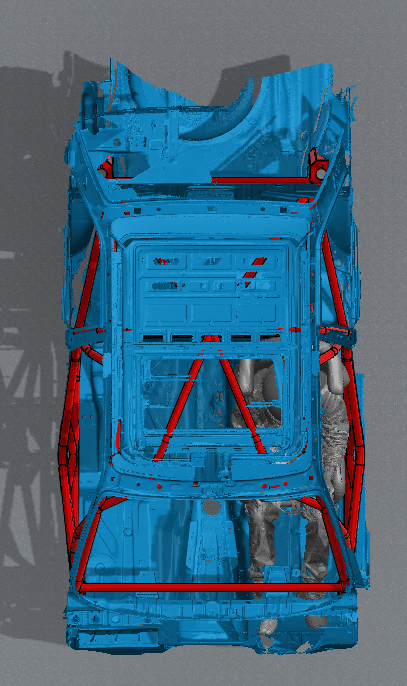

Roof Bars, FIA Bars, Rear Diagonals, Rear Strut Bar, Door Bar Supports, Strut Bracing, and Anti-Intrusion Bars
Reinforcements
This kit includes 16 Ga steel taco gussets pre-cut for the Main Hoop, Door Bars, and A-Pillar Bars, providing increased strength and rigidity throughout the cage structure.

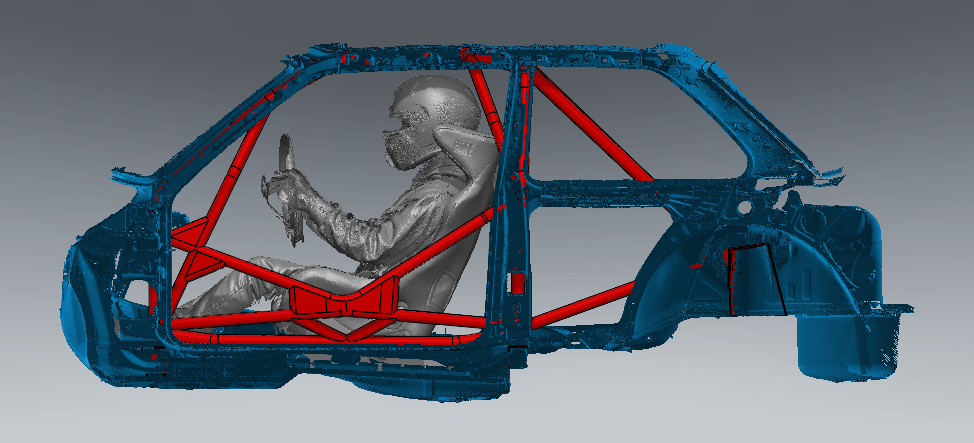

Door Bar Layout
The E30 Coupe Rally Spec Roll Cage Kit includes a standardized door bar package designed for strength and compliance:
-
Door Bar Style: X-Style
-
Door Bar Depth: Non-Gutted *Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
- Built from 1.75″ x .120″ DOM and 1.5″ x .095″ DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification
- Precision-bent to match E30C chassis geometry
- Includes 16 Ga taco gussets for key junctions
- FIA Article 253–inspired design and layout
- Supersedes RoadRace and Drift Spec structures in tube sizing and layout requirements
- Standardized Rally door bar configuration (Non-Gutted, X-Style)
Installation & Compliance Notes
-
Sunroof Removal: The sunroof must be removed to install this roll cage.
-
Compliance Responsibility: Customers are responsible for that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
