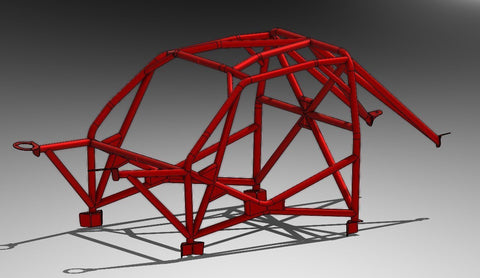

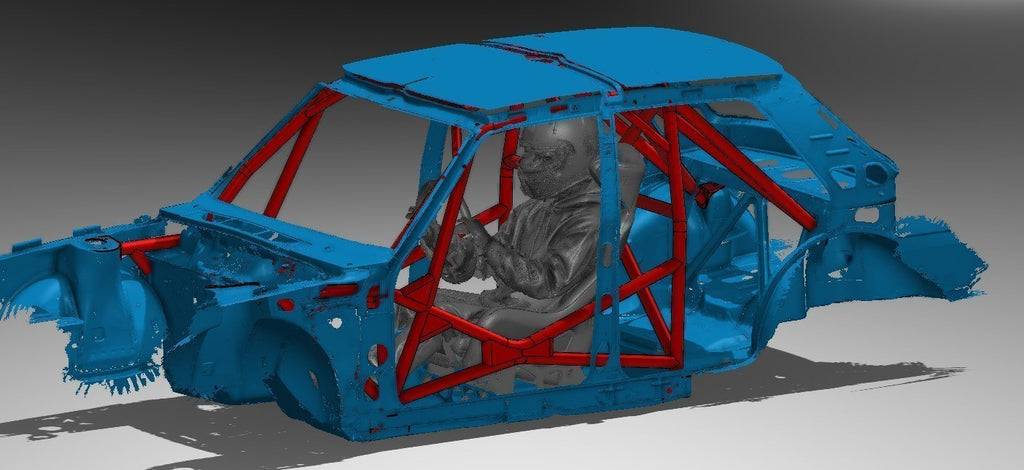

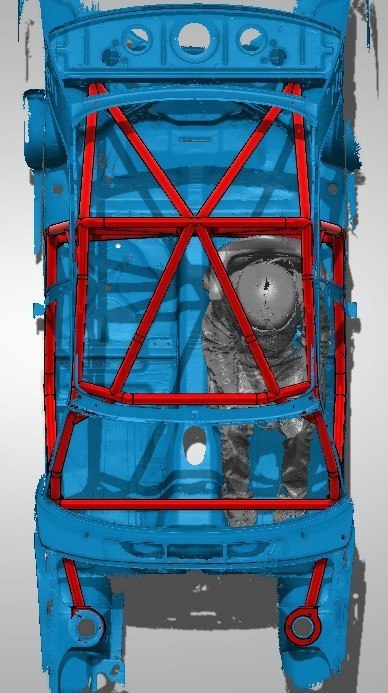

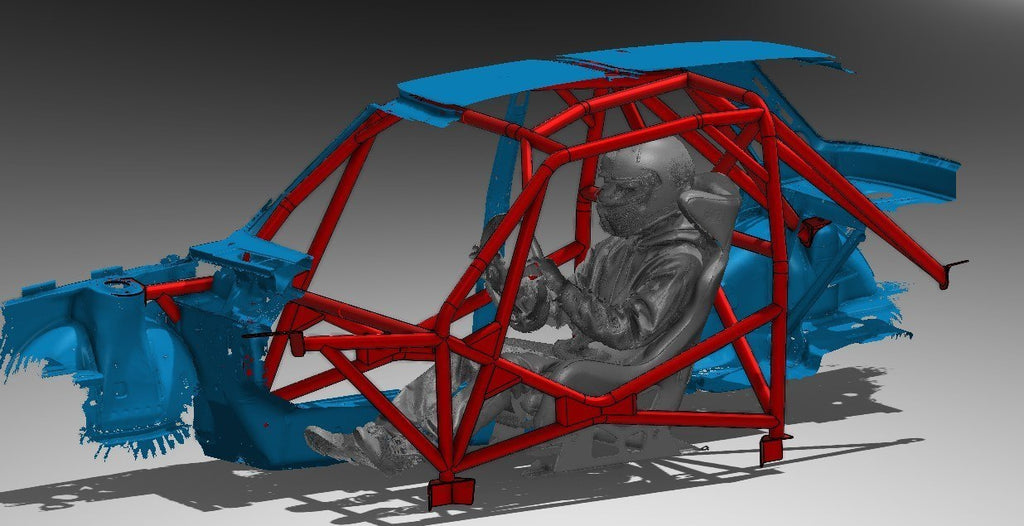

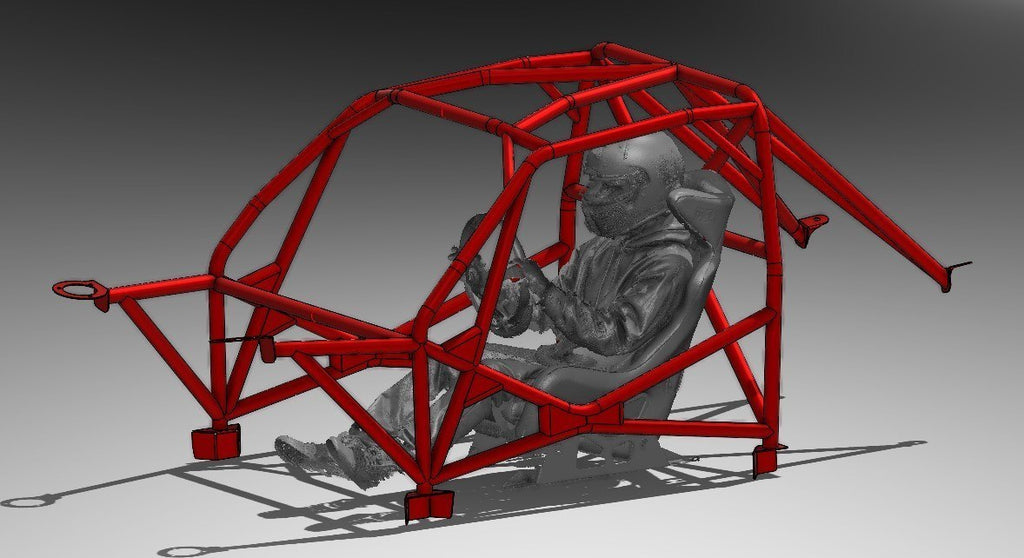

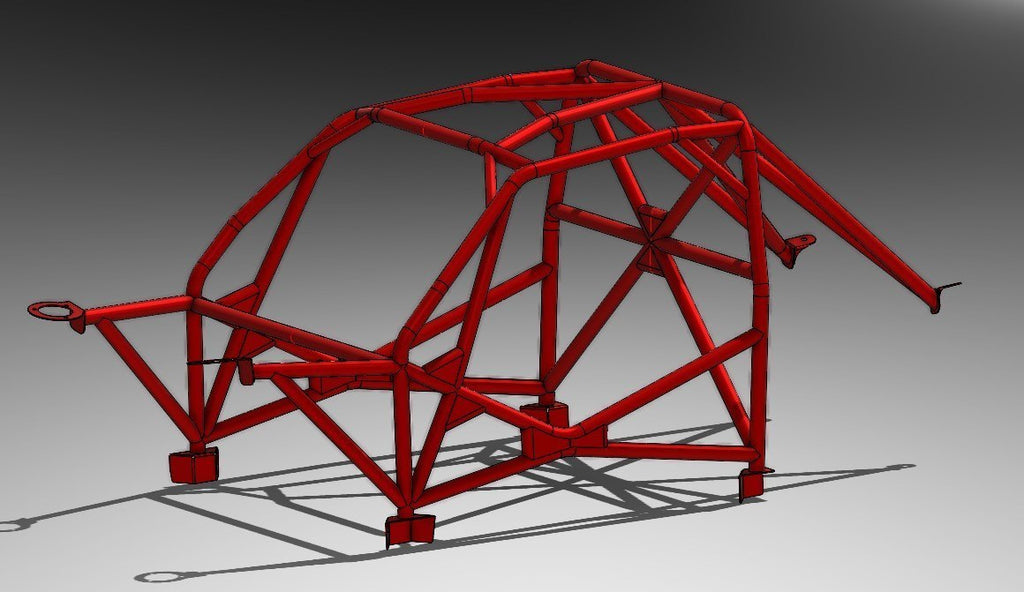

The CageKits Datsun 510 Rally Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with FIA Article 253 standards. Built from a combination of 1.75″ x .095″ 1020-1026 DOM and 1.25″ x .095″ 1020-1026 DOM tubing. The Rally platform uses larger primary structure sizes and enhanced geometry—surpassing both our RoadRace Spec and Drift Spec kits in overall rigidity and safety-focused design. Designed specifically for the Datsun 510 (1968-1983), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
*This cage will fit within both the Coupe and Sedan platforms*
Made to Order — Ships Upon Completion
Tubing Configuration
(Main and Supporting Structure – 1.75″ x .095″ DOM):
Main Hoop, A-Pillars, Door Bars, Front Top Bar, Rear Down Bars, Sill Bars, Main Hoop Diagonals, Harness Bar, and Dash Bar – Roof Bars, FIA Bars, Rear Diagonals, Rear Strut Bar, Door Bar Supports, Strut Bracing, and Anti-Intrusion Bars
(Gussets – 1.25″ x .095″ DOM):
Driver and Passenger Side Front and Rear Tube Gussets
Reinforcements
This kit includes 16 Ga steel taco gussets pre-cut for the Main Hoop, Door Bars, and A-Pillar Bars, providing increased strength and rigidity throughout the cage structure.
Door Bar Layout
The Datsun 510 Rally Spec Roll Cage Kit includes a standardized door bar package designed for strength and compliance:
Door Bar Style: X-Style
Door Bar Depth: Non-Gutted *Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details
Built from 1.75″ x .095″ DOM and 1.25″ x .095″ DOM tubing
CNC-notched joints for precise, tight fitment
Laser-etched placement guides for easy tube identification
Precision-bent to match 510 Coupe and Sedan chassis geometry
Includes 16 Ga taco gussets for key junctions
FIA Article 253–inspired design and layout
Supersedes RoadRace and Drift Spec structures in tube sizing and layout requirements
Standardized Rally door bar configuration (Non-Gutted, X-Style)
Installation & Compliance Notes
Sunroof Removal: The sunroof must be removed to install this roll cage.
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
Cages are optimized for competition and off-street applications.
